TRANSMISSION/TRANSAXLE

id050000100900


Features


Clutch, manual transmission

•  M66M-D-type manual transmission (SKYACTIV-MT) with 6 forward gears and 1 reverse gear has been adopted.


Automatic transmission

•  SJ6A-EL-type electronically controlled automatic transmission with 6 forward gears, 1 reverse gear, and a TCC mechanism has been adopted.
Main features
―  Based on the widening of a torque converter clutch (TCC) range, a contribution to low fuel consumption and the direct feel of a manual transmission vehicle have been realized.


Clutch [M66M-D]

Item

Specifications

SKYACTIV-G 1.5

SKYACTIV-G 2.0
Clutch control
Hydraulic
Clutch pedal
Type
Suspended
Pedal ratio
4.58
Full stroke (reference value)
(mm {in})
117.9 {4.642}
Clutch master cylinder inner diameter
(mm {in})
15.9 {0.626}
Clutch release cylinder inner diameter
(mm {in})
20.64 {0.8126}
Clutch cover
Spring type
Diaphragm
Set load
(N {kgf, lbf})
5400 {550.6, 1214}
6300 {642.2, 1416}
Clutch disc
Outer diameter
(mm {in})
200 {7.87}
215 {8.46}
Inner diameter
(mm {in})
132 {5.20}
150 {5.91}
Clutch fluid type
SAE J1703 or FMVSS116 DOT-3 or DOT-4


Manual transmission [M66M-D]

Item

Specifications
transmission control
Floor-shift
Operation system
Direct
Shift assist
Synchromesh
Gear ratio
1GR
5.087
2GR
2.991
3GR
2.035
4GR
1.594
5GR
1.286
6GR
1.000
Reverse
4.696
Manual transmission oil
Type
Mazda Original Long Life Gear Oil IS*1
Capacity
(approx. quantity)
(L {US qt, Imp qt})
2.0 {2.1, 1.8}

*1  :Mazda Original Long Life Gear Oil IS is superior oil for optimum shift-feel. Using Mazda Original Long Life Gear Oil IS is recommended. If Mazda Original Long Life Gear Oil IS cannot be obtained, use standard oil (API Service GL-4 (SAE 75W-90)). However, shifting in very low temperatures may become difficult.

Automatic transmission [SJ6A-EL]

Item

Specifications
Gear ratio
1GR
3.538
2GR
2.060
3GR
1.404
4GR
1.000
5GR
0.713
6GR
0.582
Reverse
3.168
ATF
Type
JWS3309
Capacity
(Approx. quantity)
(L {US qt, lmp qt})
7.2 {7.6, 6.3}
Torque converter stall torque ratio
2.00
Hydraulic system
(Number of drive/driven gear plates)
C1 clutch
4/4
C2 clutch
5/5
C3 clutch
4/3
C4 clutch
4/4
B1 brake
3/3
B2 brake
4/3
B3 brake
3/3
B4 brake
5/4
Front planetary gear
(Number of teeth)
Sun gear
38
Pinion gear (inner)
33
Pinion gear (outer)
19
Ring gear
18
Middle planetary gear
(Number of teeth)
Sun gear
26
Pinion gear
20
Ring gear
66
Rear planetary gear
(Number of teeth)
Sun gear
26
Pinion gear
20
Ring gear
66

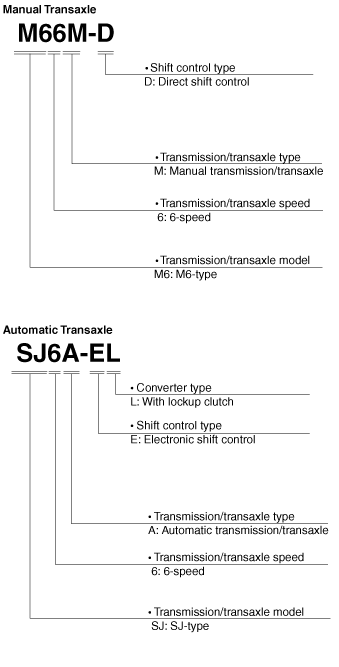

Identification

•  Each transmission/transmission is assigned a specific Mazda type code. The code can be broken down as follows:
amxuun00000579
