CLUTCH


id051000283600


Purpose, Function

•  The clutch unit transmits or cuts the drive force between the engine and manual transmission according to the clutch pedal operation.

Construction/Operation

•  The construction/operation of the clutch unit is the same as the original manual transmission (ex: M15M-D).

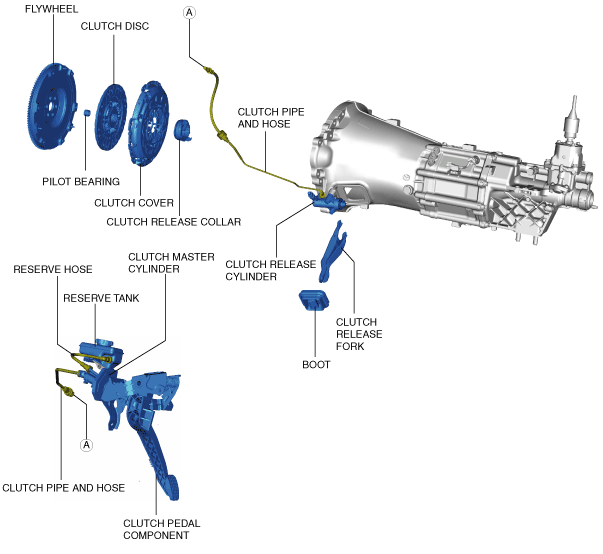

L.H.D.

amxzzn00001590

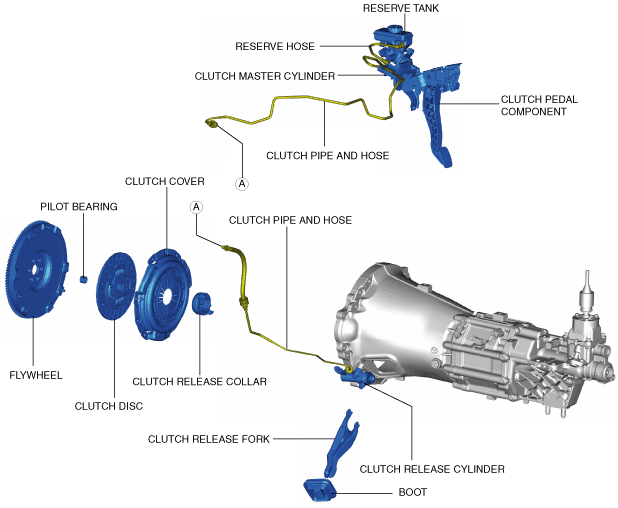

R.H.D.

amxzzn00001591
