TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR

id051300701500

Purpose/Function

• The transmission fluid temperature (TFT) sensor detects the ATF temperature in the oil pan.

Construction

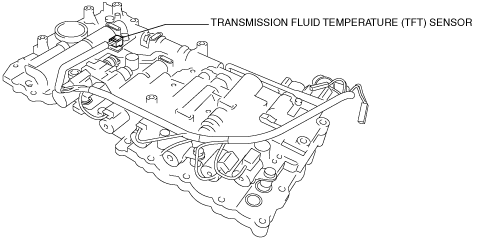

• The TFT sensor and the coupler component are equipped to the control valve body component as a single unit.

amxuun00000824

Operation

• The transmission fluid temperature (TFT) sensor outputs the signal corresponding to the ATF temperature in the oil pan to the TCM.
