M POSITION SWITCH
id051300703500
Purpose/Function
• The M position switch detects that the selector lever is in the M position.

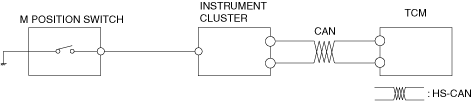

• The M position switch signal is sent to the TCM via CAN, and is used for manual shift control and engine-transmission integration control.
Construction
• The M position switch is installed to the selector lever.
• The M position switch is an on/off type switch.
Operation
• When the selector lever is in the M position, the M position switch contact point closes.
• By opening and closing the M position switch contact point, the TCM detects that the selector lever is in the M position.
