AUTOMATIC TRANSMISSION FLUID (ATF) REPLACEMENT [SJ6A-EL]

id051311251200

Warning

• A hot transmission and ATF can cause severe burns. Turn off the engine and wait until they are cool before replacing ATF.

Note

• Do not mistake the overflow plug for the drain plug.

1. Remove the drain plug and the drain plug gasket from the oil pan.

amxzzw00003333

2. Drain the ATF into a container.

3. Clean the drain plug.

4. Install a new drain plug gasket and the drain plug to the oil pan.

amxzzw00004467

Caution

• Always install the drain plug gasket in the correct direction as shown in the figure.

Tightening torque

18—22 N·m {1.9—2.2 kgf·m, 14—16 ft·lbf}

Note

• Do not mistake the overflow plug for the drain plug.

5. Remove the overflow plug and the overflow plug gasket.

amxzzw00003335

6. Remove the filler plug and the O-ring.

amxzzw00003336

7. Add the specified type of ATF through the filler plug hole.

ATF Type

Capacity (reference)

JWS3309

7.2 L {7.6 US qt, 6.3 Imp qt}

ATF Type	Capacity (reference)
JWS3309	7.2 L {7.6 US qt, 6.3 Imp qt}

8. Verify that the ATF is dripping from the overflow orifice.

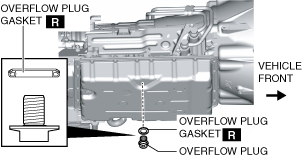

9. Install a new overflow plug gasket and the overflow plug.

amxzzw00004468

Caution

• Always install the overflow plug gasket in the correct direction as shown in the figure.

Tightening torque

18—22 N·m {1.9—2.2 kgf·m, 14—16 ft·lbf}

10. Coat a new O-ring with ATF, and install it to the filler plug.

amxzzw00003336

Note

• Replace the O-ring if it has malfunction.

Tightening torque

24—54 N·m {2.5—5.5 kgf·m, 18—39 ft·lbf}

Caution

• Always adjust the ATF level when replacing the ATF so that the appropriate level is maintained.
