TIE-ROD END REPLACEMENT

id061300801200

1.  Remove the snap pin from the tie-rod end.

amxuuw00002976

2.  Loosen the tie-rod end nut.

amxuuw00002977

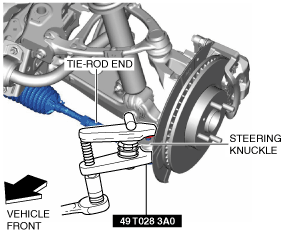

3.  Using the SST, disconnect the steering knuckle and tie-rod end.

amxuuw00002978

4.  Remove the nut from the tie-rod end.

amxuuw00002979

5.  Place alignment marks as shown in the figure for proper installation.

amxuuw00002980

6.  Remove the tie-rod end.

amxuuw00002981

7.  Place alignment marks on the new tie-rod end in the same positions as the removed tie-rod end.

amxuuw00002982

8.  Align the marks that were made before removing the tie-rod end, and assemble the tie-rod end to the tie rod.

amxuuw00002983

9.  Verify that dimension A shown in the figure is within the specification.

amxuuw00003632

•  If not within the specification, make adjustments so that dimension A is within the specification.

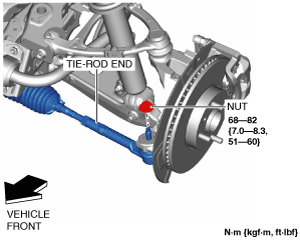

10.  Install the tie-rod end to the steering knuckle.

amxuuw00002985

11.  Install the snap pin to the tie-rod end.

amxuuw00002986

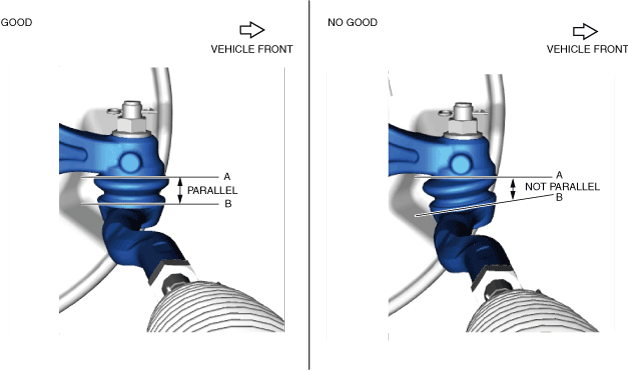

12.  Verify that A and B shown in the figure are parallel while the vehicle is on the ground.

amxzzw00005056

Caution

•  Install the tie-rod end to the correct position. Otherwise, it could cause cracks on the tie-rod end boot.

•  If the installation position is not correct, perform the adjustment using the following procedure.

1.  Adjust the tie-rod end by rotating it so that it is at the correct position.

am2zzw00015169

13.  After installation, inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT.)
