STEERING GEAR AND LINKAGE ASSEMBLY

id061400810800

Purpose of Adoption

Service Point

Spacer, Rubber, EPS CM Assembly Note

1.   Install the spacer and rubber to the steering gear.

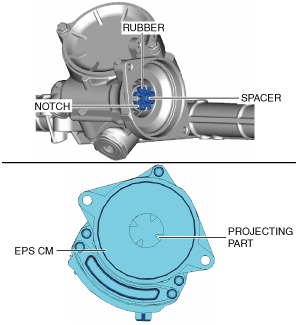

2.   Install the EPS CM so that the projections on the EPS CM (rotor) are engaged with the notches in the rubber.

amxzzq00000006

Note

•   If the projections on the EPS CM (rotor) are not engaged with the notches in the rubber, adjust the position of the EPS CM projections (rotor).

3.  Tighten the bolts evenly.

Common Inquiry

•  If the projections of the EPS CM (rotor) are not engaged with the notches in the rubber, adjust the position of the EPS CM projections (rotor).

amxzzq00000007
