•  The condenser cools the high temperature, high pressure gaseous refrigerant circulating internally using airflow from the exterior and changes it to low temperature, high pressure liquid refrigerant.

•  The condenser is positioned at the front of the radiator.

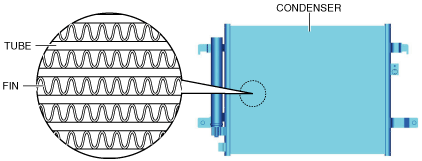

•  The condenser consists of the tube which passes refrigerant, and the heat radiation fin.

amxuun00000466

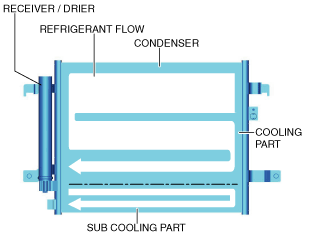

•  A multi-flow type (sub-cooling type) condenser has been adopted.

•  The multi-flow type (sub-cooling type) is integrated with the condenser and the receiver/drier.

•  The multi-flow type (sub-cooling type) separates the refrigerant, cooled once by the condenser, into vapor and liquid using the receiver/drier, and returns it to the sub-cooling part of the condenser again to cool it.

•  As a result, liquification of the refrigerant is promoted and cooling performance is improved.

•  For the condenser operation, refer to the [REFRIGERANT SYSTEM]. (See REFRIGERANT SYSTEM.)

•  Not applicable
