BLOWER MOTOR REMOVAL/INSTALLATION

id071100005900

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

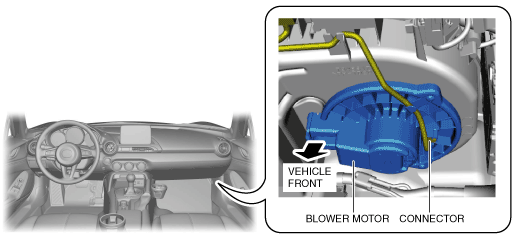

2.  Disconnect the connector.

amxuuw00003834

3.  Remove the screws.

amxzzw00003103

4.  Remove the blower motor.

5.  Install in the reverse order of removal.
