•  The A/C unit opens/closes the air intake door to switch the air intake port to FRESH or REC.

•  The A/C unit moves the air mix damper to change the amount of the airflow passing through the heater core.

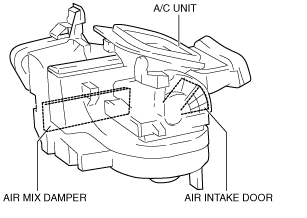

•  The A/C unit consists of the following parts.

•  For the air intake door operation, refer to the [BLOWER SYSTEM]. (See BLOWER SYSTEM.)

•  For the air mix damper operation, refer to the [VENTILATION SYSTEM]. (See VENTILATION SYSTEM.)

•  Not applicable
