AIR DIST UNIT DISASSEMBLY/ASSEMBLY

id071100202861

Caution

• If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.

1. Disassemble in the order indicated in the table.

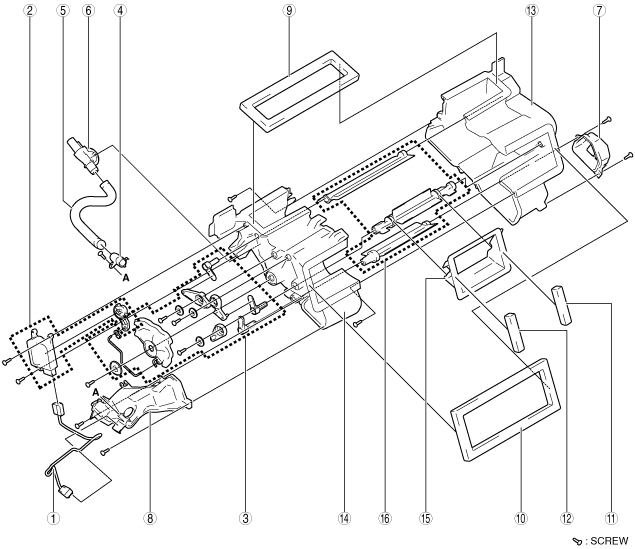

L.H.D.

amxuuw00003855

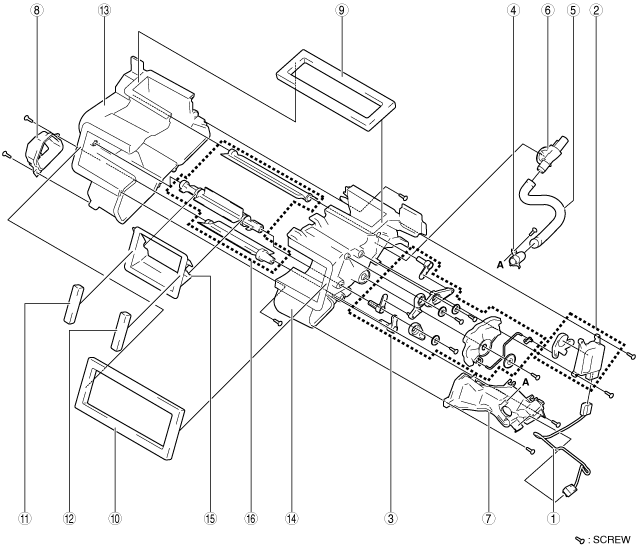

R.H.D.

amxzzw00003108

1

Harness

2

Airflow mode actuator

3

Airflow mode main link

4

Joint (with full-auto air conditioner)

5

Hose (with full-auto air conditioner)

6

Aspirator (with full-auto air conditioner)

7

Heat duct (RH)

8

Heat duct (LH)

9

Polyurethane foam A

10

Polyurethane foam B

11

Polyurethane foam C

12

Polyurethane foam D

13

Case A

14

Case B

15

Case C

16

Airflow mode door

2. Assemble in the reverse order of disassembly.

1	Harness
2	Airflow mode actuator
3	Airflow mode main link
4	Joint (with full-auto air conditioner)
5	Hose (with full-auto air conditioner)
6	Aspirator (with full-auto air conditioner)
7	Heat duct (RH)
8	Heat duct (LH)
9	Polyurethane foam A
10	Polyurethane foam B
11	Polyurethane foam C
12	Polyurethane foam D
13	Case A
14	Case B
15	Case C
16	Airflow mode door
