A/C UNIT DISASSEMBLY/ASSEMBLY

id071100800300

Caution

•  If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.

1.  Disassemble in the order indicated in the table.

L.H.D.

amxzzw00003117

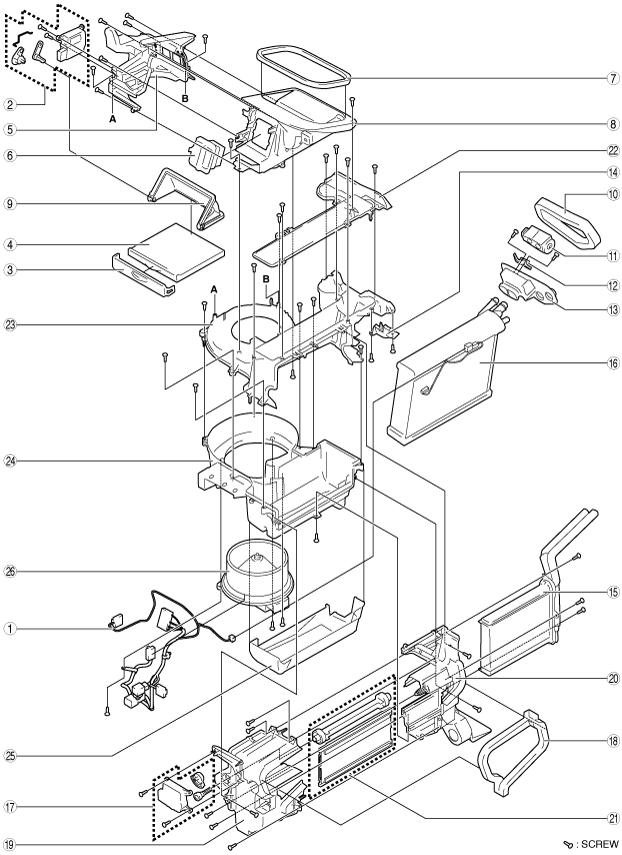

R.H.D.

amxzzw00003118

Step	Part name	Disassembly/assembly of main parts
		Heater core	Evaporator
1	Harness	—	×
2	Air intake actuator	—	×
3	Dust filter cover	—	×
4	Dust filter	—	×
5	A/C case A	—	×
6	Blower fan controller	—	×
7	Polyurethane foam B	—	×
8	Air intake box	—	×
9	Air intake door	—	×
10	Polyurethane foam C	×	×
11	Expansion valve	×	×
12	Plate	×	×
13	Seal	×	×
14	Cover	×	×
15	Heater core	×	—
16	Evaporator	—	×
17	Air mix actuator	—	—
18	Polyurethane foam D	—	—
19	A/C case D	—	—
20	A/C case F	—	—
21	Air mix damper	—	—
22	A/C case E	—	×
23	A/C case B	—	—
24	A/C case C	—	—
25	Polyurethane foam A	—	—
26	Blower motor	—	—

2.  Assemble in the reverse order of disassembly.

3.  When replacing the evaporator, add compressor oil to the refrigerant cycle.
