AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1801600

Caution

•  If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.

L.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Disconnect the connector.

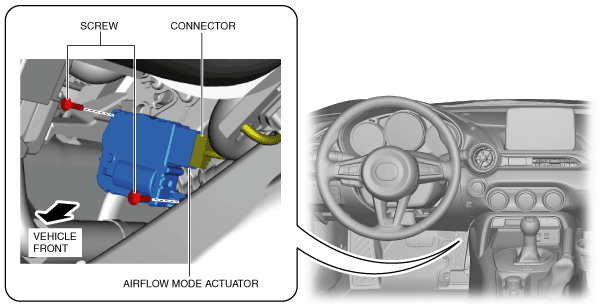

amxuuw00003918

3.  Remove the screws.

4.  Remove the airflow mode actuator.

5.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Disconnect the connector.

amxzzw00003084

3.  Remove the screws.

4.  Remove the airflow mode actuator.

5.  Install in the reverse order of removal.
