CLOCK SPRING ADJUSTMENT

id081000802100

1.  Set the front wheels straight ahead.

Caution

•  The clock spring will break if over-wound. Do not forcibly turn the clock spring.

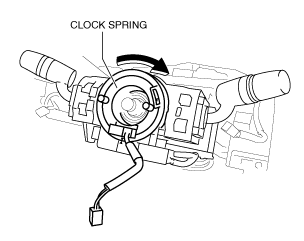

2.  Turn the clock spring clockwise until it stops.

amxzzw00003657

3.  From the stopped position, turn the clock spring counterclockwise approx. 2 turns.

amxuuw00004005

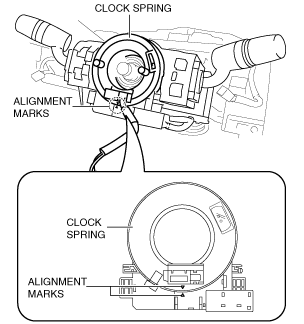

4.  Align the mark on the clock spring with the mark on the outer housing.

amxuuw00004006

amxuuw00004007

Note

•  After adjusting the alignment marks, the guides can be verified in the viewing slots shown in the figure.
