DRIVER-SIDE AIR BAG MODULE REMOVAL

id081000808000

Warning

•  Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the driver-side air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

Note

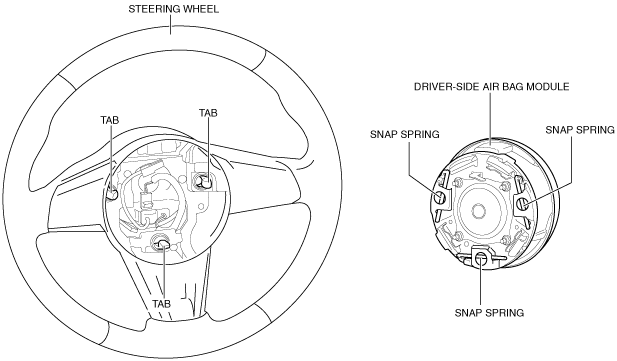

•  The driver-side air bag module engages with the snap springs of the driver-side air bag module and the tabs of the steering wheel.

amxuuw00004094

1.  Switch the ignition off.

2.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

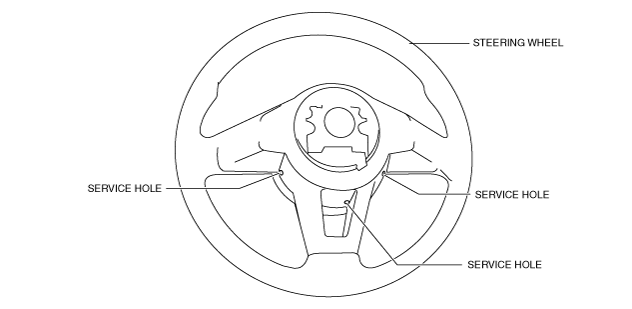

3.  Verify the service hole on the back side of the steering wheel shown in the figure.

amxuuw00004095

4.  Insert the tool into the service hole.

Recommended tool

•  Phillips driver (diam. 6)

amxuuw00004096

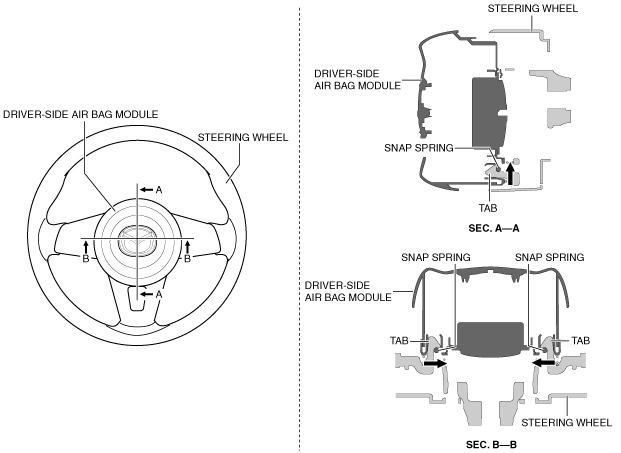

5.  Press the snap springs in the direction of the arrows shown in the figure and detach the tabs.

amxuuw00004097

Note

•  While pressing the tool in the direction of arrow (1) shown in the figure, move the tool in the direction of arrow (2).

amxuuw00004098

6.  Remove the driver-side air bag module from the steering wheel.

amxuuw00004099

7.  Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

amxuuw00004100

8.  Disconnect the driver-side air bag module connector.

9.  Disconnect the horn switch connector.

10.  Remove the driver-side air bag module.
