PRESSURE SENSOR REMOVAL/INSTALLATION

id081000810100

Warning

•  Handling the pressure sensor improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the pressure sensor. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1.  Switch the ignition off.

2.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION.)

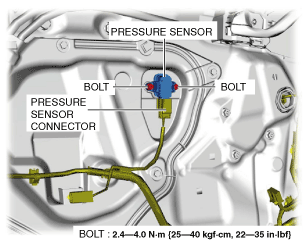

4.  Disconnect the pressure sensor connector. (See Pressure Sensor Connector Disconnect Note.)

amxuuw00004031

5.  Remove the bolts.

6.  Remove the pressure sensor.

7.  Install in the reverse order of removal.

8.  Switch the ignition ON (engine off or on).

9.  Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.

•  If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [SAS CONTROL MODULE (AIR BAG SYSTEM)].)

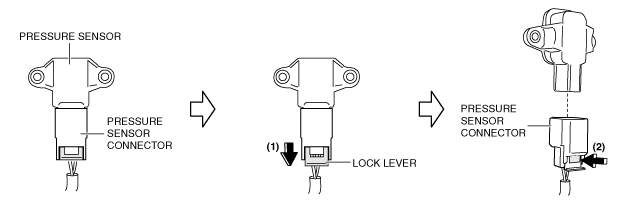

Pressure Sensor Connector Disconnect Note

1.  Pull out the pressure sensor connector lock lever in the direction of arrow (1) shown in the figure.

amxuuw00004032

2.  While pressing the area indicated by arrow (2) shown in the figure, disconnect the pressure sensor connector.
