BODY SHELL
id091000025000
Purpose
• The following structures have been adopted to absorb impact efficiently in the event of a collision and to suppress cabin deformation.
-
― Straight structure which achieves both high strength and weight reduction
― Multi-load path structure which assures a high level of collision absorption
• A cross-shaped sectional front bumper reinforcement crush can and front side frames have been adopted which effectively absorb impact energy during a frontal collision and suppress cabin deformation.
Structural View
Construction

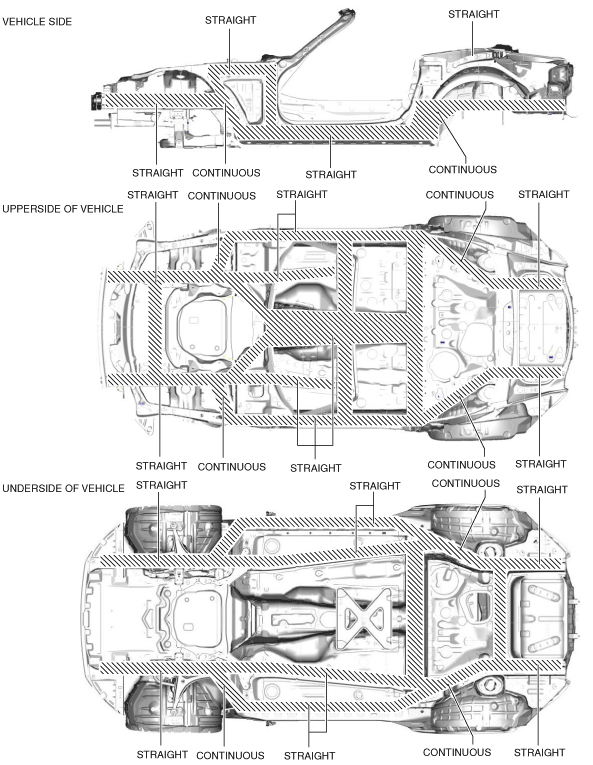

Straight structure
-
• The straight-shape frames create a continuous configuration from the front to the rear.

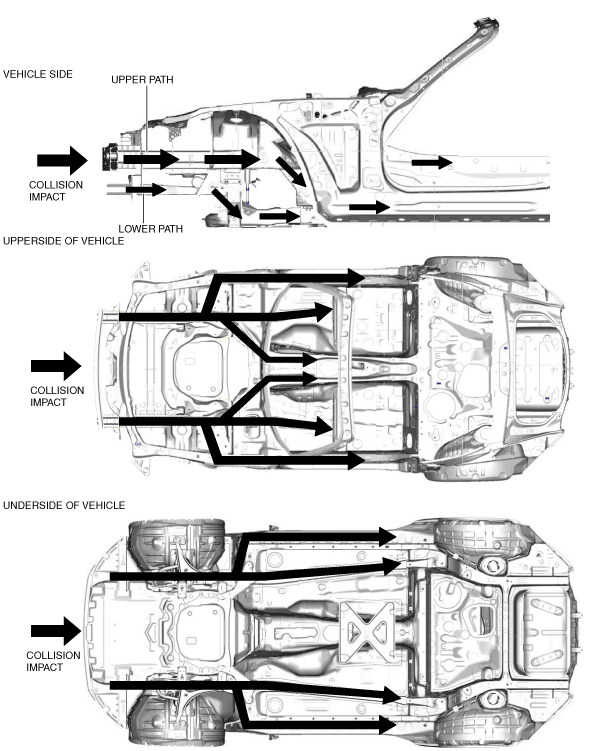

Multi-load path structure
-
• Impact energy in a collision is dispersed in multiple directions and absorbed effectively.
-
• To disperse and absorb frontal impact energy at the engine compartment, the following two paths have been established at the vehicle front (front frame).
Upper path
-
― The upper path disperses and absorbs frontal impact energy from the front frame to the side body and floor.
Lower path
-
― Not only the body parts, the front crossmember is also used to absorb impact energy. The lower path disperses and absorbs frontal impact energy from the front frame to B frame.
-

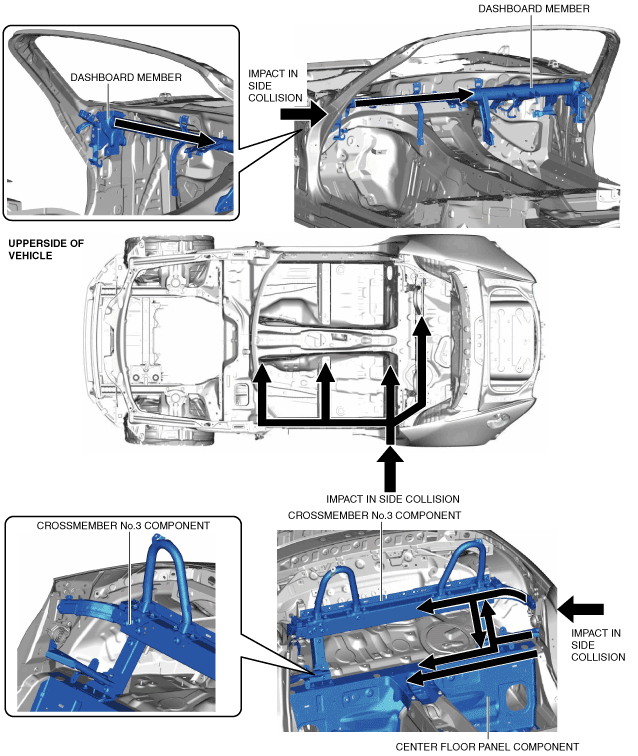

• The dashboard member is used to absorb impact energy in addition to the body frame. The dashboard member absorbs impact energy from the hinge pillar during a side-impact collision.
• The following has been achieved by supporting the rear side frame front which supports the door using the crossmember No.3 component and center floor panel component.
-
― The overall rigidity has been enhanced to prevent cabin deformation.
― The path for efficiently absorbing and dispersing side impact energy is assured.

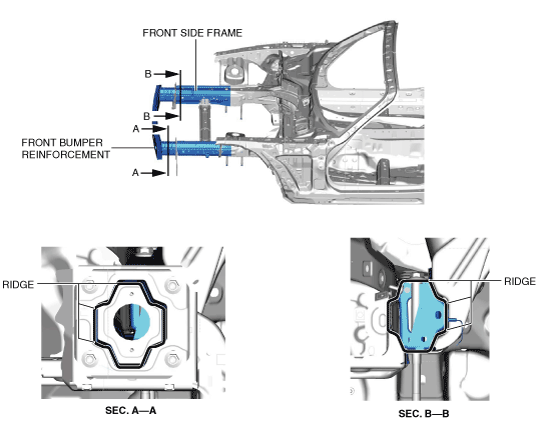

Cross sectional shape
-
• The strength is enhanced by increasing the number of ridges even using a steel plate of the same thickness. By utilizing this characteristic, the cross-section of the front bumper reinforcement crush can and front side frames is cross-shaped, achieving both high impact energy absorption and weight reduction.
Fail-safe
• Not applicable
