ENERGY-ABSORBING FORM


id091000026600


Purpose, Function

•  An energy-absorbing foam (front side) has been adopted to prevent a pedestrian from contacting the high-rigidity front bumper reinforcement in a collision.

Construction

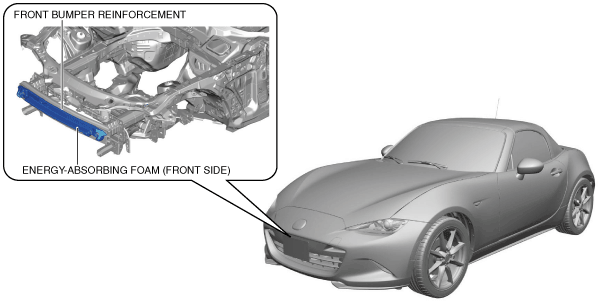

•  The energy-absorbing foam (front side) is located in front of the front bumper reinforcement.
amxzzn00001117
•  If the vehicle hits a pedestrian, air holes and the hollowed area of the foaming agent are crushed thus the energy-absorbing foam (front side) functions as a cushion.
amxzzn00001200

Fail-safe

•  Not applicable
