FRONT BUMPER REMOVAL

id091000804800

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

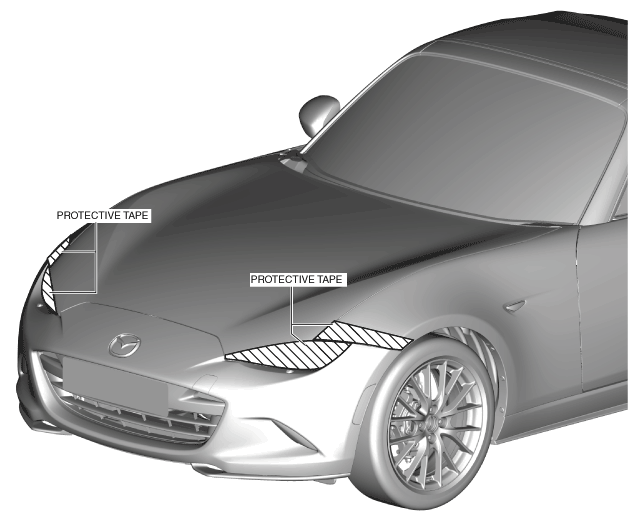

2.  To prevent scratches or damage, apply protective tape to the positions shown in the figure.

amxzzw00003566

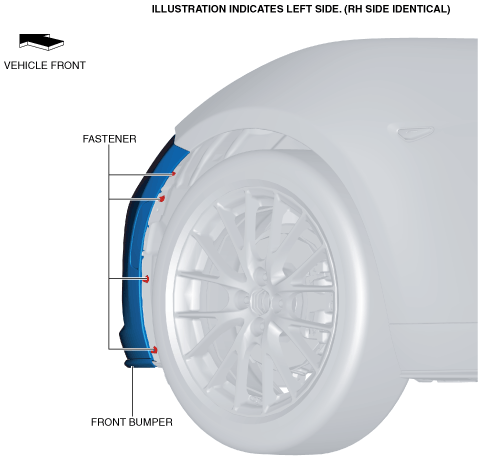

3.  Remove the fasteners.

amxzzw00004559

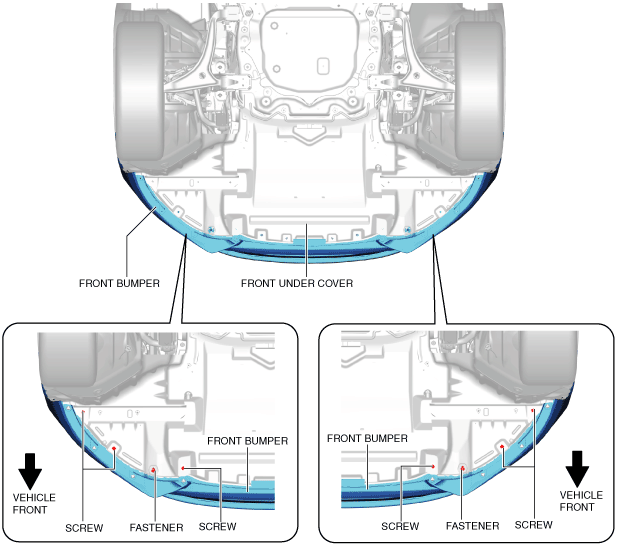

4.  Remove the screws and fasteners.

amxuuw00003168

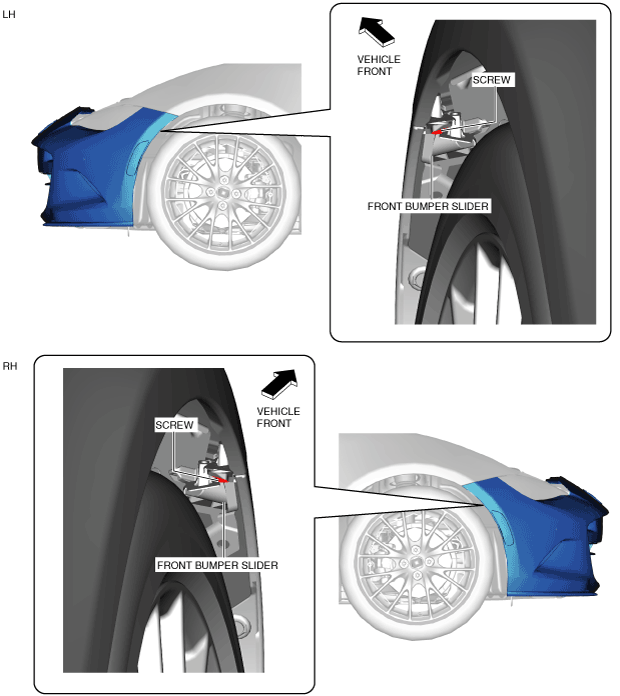

5.  Partially peel back front mudguard No.2 and remove the screws.

amxuuw00003169

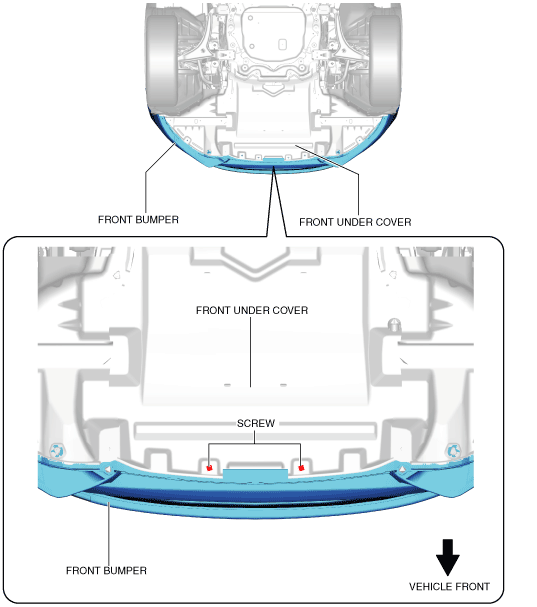

6.  Remove the screws.

amxuuw00003170

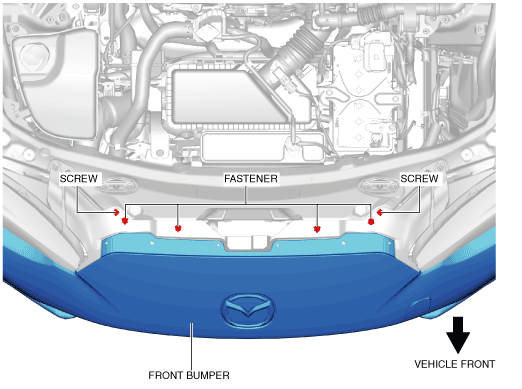

7.  Remove the screws and fasteners.

amxuuw00003171

Caution

•  Carefully remove the front bumper from the front bumper slider. If the front bumper is removed from the front bumper slider with excessive force, the front bumper hooks may be damaged because the front bumper and the front bumper slider are engaged firmly.

•  Detach the front bumper hooks from the front bumper slider using two people, one person supports the front bumper. If the front bumper hooks are detached from the front bumper without supporting the front bumper, it may fall off and be damaged.

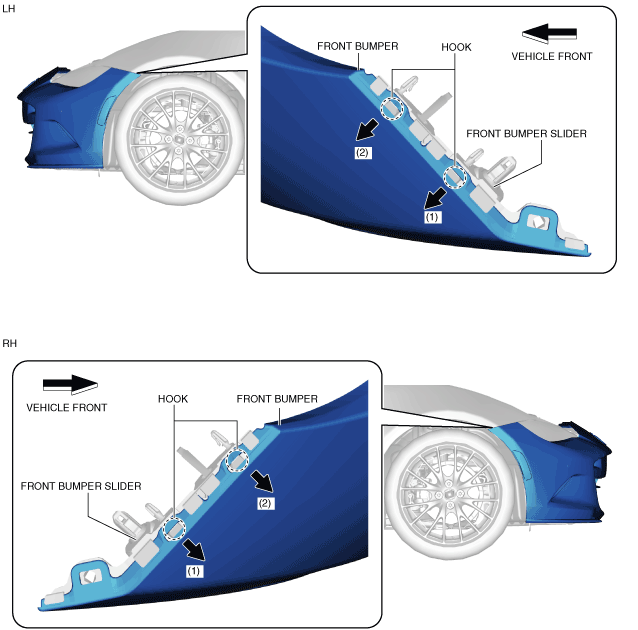

8.  Pull the front bumper in the direction of the arrows in the order shown in the figure, and detach the front bumper hooks from the front bumper slider.

amxuuw00003172

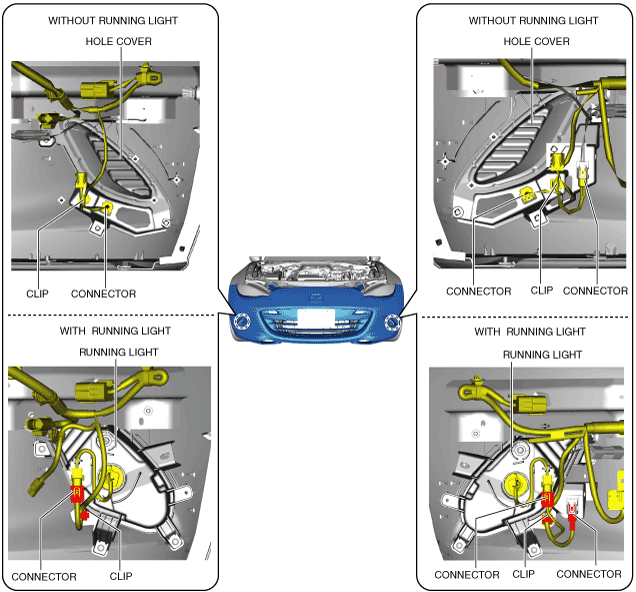

9.  Disconnect the connectors.

amxzzw00002870

10.  Remove the wiring harness clips.

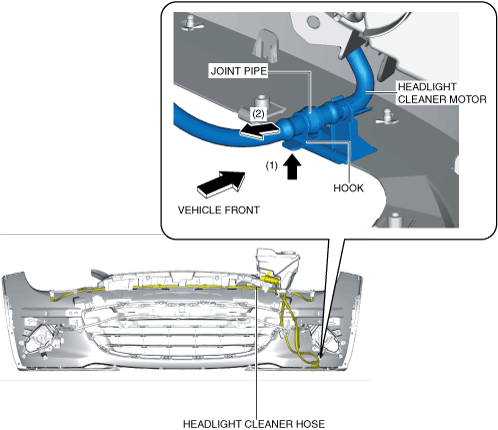

11.  While pressing the hook of the joint pipe in the direction of arrow (1) shown in the figure, pull the joint pipe in the direction of arrow (2) to disconnect the joint pipe from headlight cleaner motor. (with headlight cleaner system)

amxzzw00004560

12.  Remove the front bumper.
