POWER WINDOW REGULATOR REMOVAL/INSTALLATION

id091200001300

1.  Perform the door glass preparation. (See DOOR GLASS REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION.)

(3)  Door glass (See DOOR GLASS REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

amxuuw00002974

5.  Remove nuts (1).

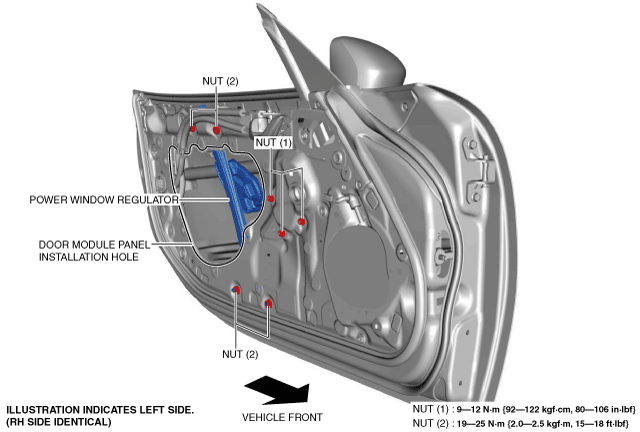

amxuuw00002975

6.  Remove nuts (2).

7.  Remove the power window regulator through the door module panel installation hole.

8.  Install in the reverse order of removal.

9.  Perform the power window system initial setting. (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE.)
