OUTER MIRROR GLASS REMOVAL

id091200002800

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

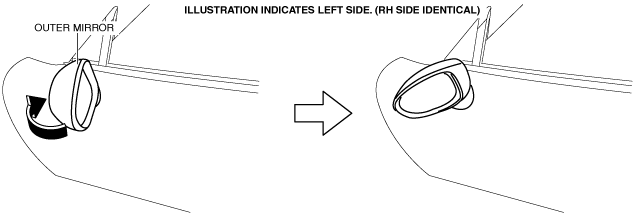

2.  To facilitate removal of the outer mirror glass, orient the outer mirror in the direction of the arrow shown in the figure.

amxuuw00003000

3.  Affix the protective tape to the position shown in the figure to prevent scratches and damage.

amxzzw00004571

4.  Move the outer mirror glass in the direction of the arrow shown in the figure to secure a space for inserting your fingers.

amxzzw00004572

Caution

•  Be careful not to overheat the outer mirror, as temperatures higher than 60 °C {108 °F} deform it.

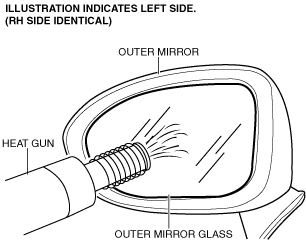

5.  Removal of the outer mirror glass can be facilitated by warming the back of the glass to approx. 50 °C {90 °F} to 60 °C {108 °F} using a heat gun.

amxzzw00004573

Caution

•  When moving the outer mirror glass, if only the mirror glass is moved, the mirror glass could separate from the outer mirror glass holder. Move the outer mirror glass holder together with the mirror glass when moving the outer mirror glass.

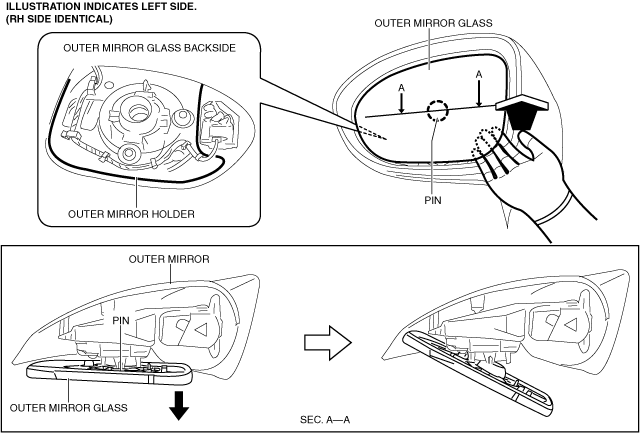

6.  Insert your fingers into the area shown in the figure, and move the outer mirror glass in the direction of the arrow to detach the pin.

amxzzw00004574

7.  Move the outer mirror glass in the direction of the arrow shown in the figure to secure a space for inserting your fingers.

amxzzw00004575

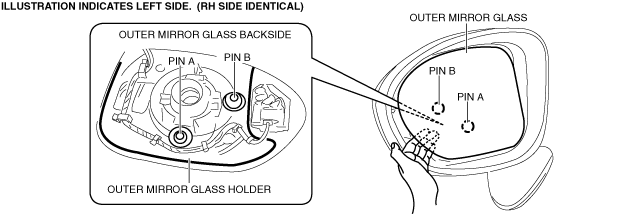

8.  Insert your fingers behind the glass in the same manner as Step 4 and disengage the remaining pin A and B.

amxzzw00004576

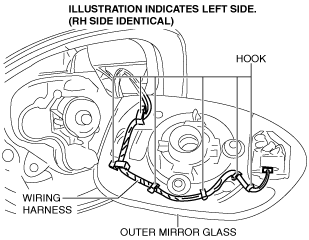

9.  Remove the wiring harness for hooks.

amxzzw00003073

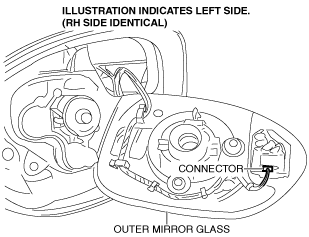

10.  Disconnect the connector. (with blind spot monitoring (BSM) system)

amxuuw00003006

11.  Disconnect the connectors. (with heated outer mirror)

amxzzw00004577

12.  Remove the mirror glass holder and the outer mirror glass as a single unit.
