POWER OUTER MIRROR SWITCH
id091200014600
Purpose
• The switch turns on/off in conjunction with the driver's switch operation and switches the power outer mirror angle adjustment circuit contact point.
Function
Up-down/left-right adjustment function
-
• The power outer mirror switch switches the contact point according to the switch operation. As a result, the circuit to the up-down/left-right adjustment motor is switched.
Left/right selection function
-
• The power outer mirror switch is used to select the side on which adjustment of the power outer mirror glass is desired.
Construction
• The power outer mirror switch consists of the following parts.
-
― Up-down/left-right adjustment switch
― Left/right selection switch

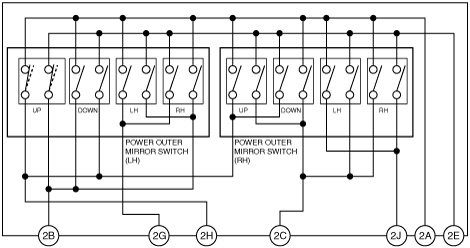

Operation
Ex: Switch is pressed in the upward direction
-
• By operating the power outer mirror switch, the up-down/left-right contact points for the power outer mirror are switched.
Fail-safe
• Not applicable
