AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION

id091200016000

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

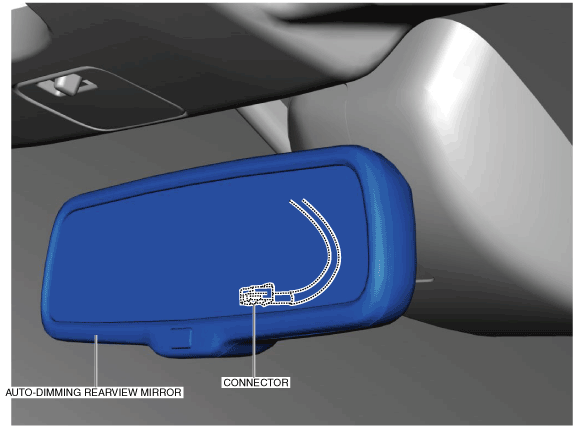

2.  Disconnect the connector.

amxzzw00003478

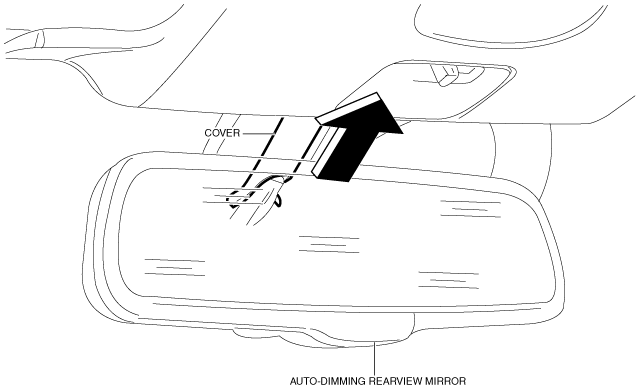

3.  Remove the cover in the direction of the arrow shown in the figure.

amxuuw00005587

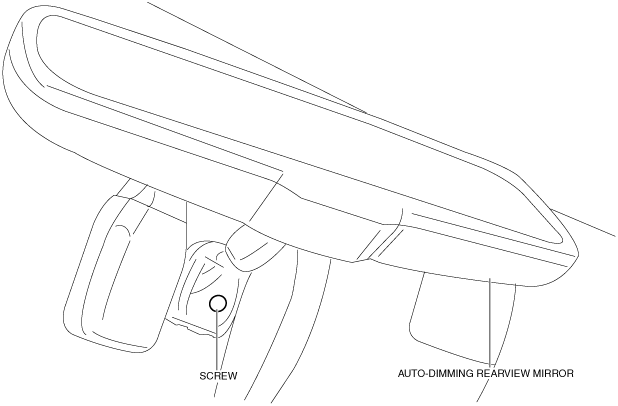

4.  Loosen the screw.

amxuuw00003027

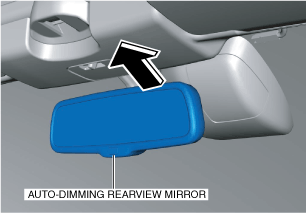

5.  Remove the auto-dimming rearview mirror in the direction of the arrow shown in the figure.

amxzzw00004551

6.  Install in the reverse order of removal.
