AUTO-DIMMING REARVIEW MIRROR

id091200016200

Purpose

• The auto-dimming rearview mirror prevent the driver from being blinded by light from vehicles at the rear.

Function

• The auto-dimming rearview mirror changes the reflection rate of the auto-dimming rearview mirror and the auto-dimming outer mirrors between 7% and 85% according to the level of the surrounding light and the glare level from vehicles at the rear.

Note

• The reflection rate of the auto-dimming rearview mirror is fixed at 50% or more when the selector lever (AT)/shift lever knob (MT) is shifted to the R position (AT/MT).

Glare level detection function

• The auto-dimming rearview mirror detects the level of the surrounding light and glare from vehicles at the rear using the light sensor.

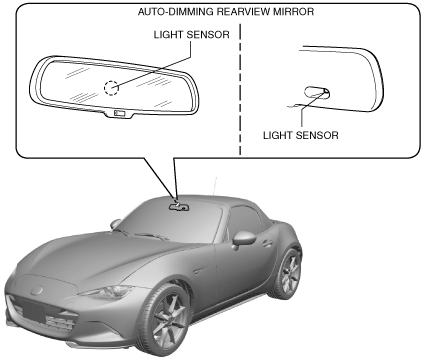

Structural view

amxzzn00000928

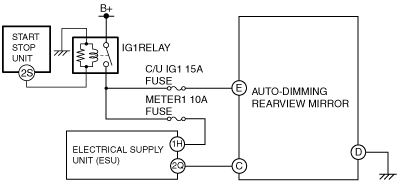

System wiring diagram

amxzzn00000929

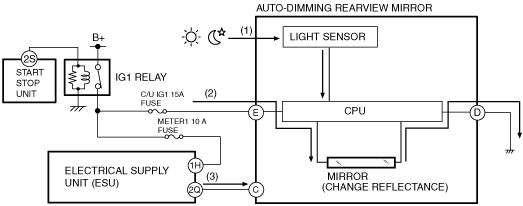

Operation

1. When the auto-dimming rearview mirror switch is turned on, the auto-dimming rearview mirror initiates the detection of the glare level.

2. The auto-dimming rearview mirror detects (1) the level of the surrounding light and glare level from vehicles at the rear using the light sensor.

3. The auto-dimming rearview mirror changes (2) the voltage input to the auto-dimming rearview mirror according to the level of the surrounding light and the glare level from vehicles at the rear.

4. The auto-dimming rearview mirror change the reflection rate between 7% and 85% according to the input voltage.

5. When the auto-dimming rearview mirror receives an R position signal from the electrical supply unit (ESU), the reflection rate of the auto-dimming rearview mirror are fixed (3) at 50% or more.

amxzzn00000930

Fail-safe

• Not applicable
