POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY

id091200208377

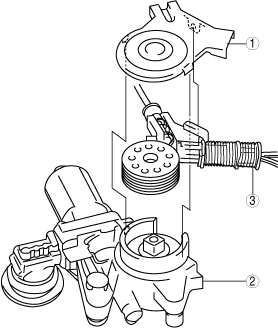

1.  Disassemble in the order indicated in the table.

amxzzw00003737

1	Cover (See Cover Removal Note.)
2	Power window motor
3	Regulator

2.  Assemble in the reverse order of disassembly.

Caution

•  When installing the power window motor, be careful that the cable does not unwind from the drum.

•  Handle the power window regulator wire without applying a large load to it.

Cover Removal Note

1.  Carefully bend away the crimp of the cover using long nose pliers.

amxuuw00005382
