DRIVER'S/PASSENGER'S SEAT
id091300009500
Purpose, Function
• The following have been adopted to provide safety and optimum driving posture or position for the driver.
-
― Dial front tilt mechanism
― Manual sliding function
― Manual recliner function
• The following have been adopted on the passenger seat to provide optimum driving posture or position for passengers.
-
― Manual sliding function
― Manual recliner function
• A net seat structure has been adopted on the driver and passenger seats to achieve the following.
-
― Provide ride comfort by blocking vibration
― Improvement of holdability during cornering
― Weight-reduced, thinner seat
• Improved holdability during perfomance driving by positioning 2 side panels each on the left and right sides of the seat back and seat cushion. (With sports type (RECARO))
• The sitting posture support strength during performance driving has been improved by a seat back with a built-in steel pad. (With sports type (RECARO))
• A Pirelli mat*1 has been built into the the driver's seat cushion to achieve the following. (With sports type (RECARO))
-
― Improvement of driving posture support strength during performance driving
― Reduction of fatigue and body strain due to long drives
• The following have been adopted to mediate injury to a child during a collision or emergency braking.
-
― ISOFIX anchors which enable easy/secure fixing of ISOFIX-applicable child-restraint seats
― Top tether anchors which enable fixing of child-restraint seats with tether strap
*1 :Pirelli mat is the collective term for a rubber mat adopted to Recaro seats.
Construction, Operation

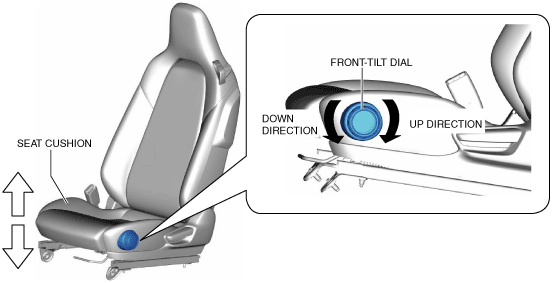

Dial front tilt mechanism
-
• The height of the front part of the seat cushion can be adjusted by turning the front-tilt dial.

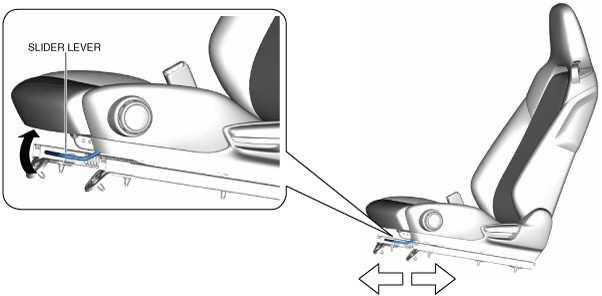

Manual slide
-
• The front and back positions of the seat can be adjusted by operating the slider lever.
• The front and back positions of the seat and the height can be adjusted because the seat slider is located diagonally.
-
Note
-
• Springs are integrated with the driver's side/passenger's side seat to assist forward sliding.
Manual recliner
-
• The front and back positions of the seat back can be adjusted by operating the recliner lever.
Net seat structure
-
• Net cloth material with special elastic fibers is woven into the supporting parts of the seat backs and seat cushions.
• With the adoption of a net with high vibration dampening effect, vibration has been reduced for improved ride comfort.
• With the adoption of a net which has the characteristic of the occupant's body, holdability has been improved during cornering.
• With the adoption of a thin net instead of metal springs or urethane padding, a weight-reduced, thin seat has been realized.

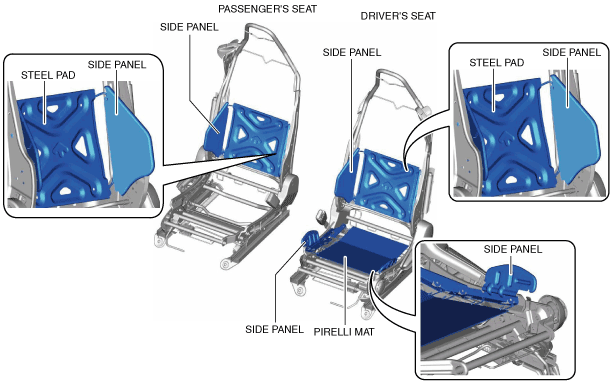

Side panel/steel pad/pirelli mat (With sports type (RECARO))
-
• The following parts are located on each part of the seat back and seat cushion.
-
― Side panel
― Steel pad
― Pirelli mat (driver's seat only)

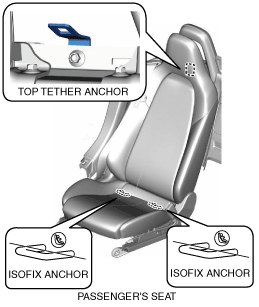

ISOFIX anchor/top tether anchor (Europian (L.H.D. U.K.) specs.)
-
• ISOFIX anchors and top tether anchor are located at the positions shown in the figure.
Fail-safe
• Not applicable
