SECURITY AND LOCKS


id091400108100


Outline

•  A power door and fuel-filler lid lock system has been adopted in which all doors and the fuel-filler lid are locked/unlocked when the driver's door is locked/unlocked using the door lock switch, or the door key cylinder.
•  A trunk lid opener system has been adopted in which the trunk lid can be opened just by pressing the trunk lid opener switch.
•  A keyless entry system has been adopted in which locking/locking of the doors and the fuel-filler lid is performed by operation of the remote transmitter button, even from a location away front the vehicle. (With keyless entry system)
•  An advanced keyless entry system has been adopted which performs automatic authorization of the remote transmitter being carried, and locking/unlocking of the doors and the fuel-filler lid. (With advanced keyless entry system)
•  A push button start system has been adopted that automatically performs authorization of the remote transmitter brought into the vehicle.
•  An immobilizer system has been adopted that only allows remote transmitters that have been previously programmed to the vehicle to start the engine.
•  A theft-deterrent system has been adopted which activates the theft-deterrent siren or theft-deterrent horn if a door, the trunk lid, or the hood is opened improperly. (With theft-deterrent system)

Structural View


Power door and fuel-filler lid lock system

amxzzn00000953


Trunk lid opener system

amxzzn00000954

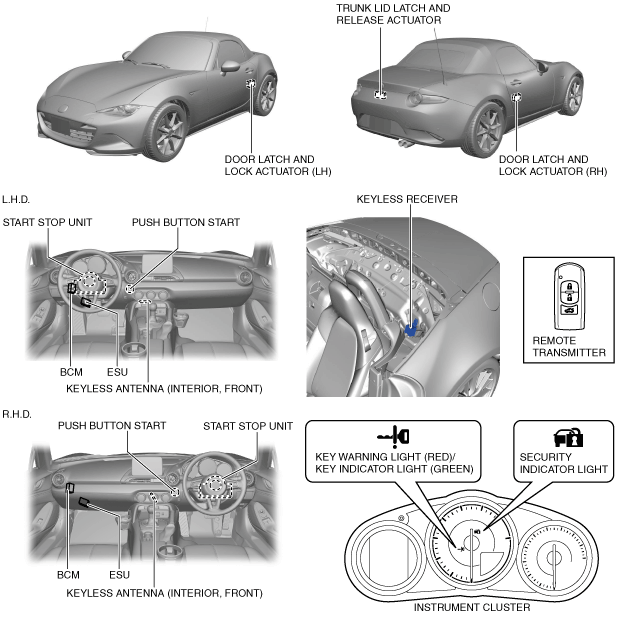

Keyless entry system/push button start system/immobilizer system

amxzzn00000955


Advanced keyless entry system/push button start system/immobilizer system

amxzzn00000956


Theft-deterrent system

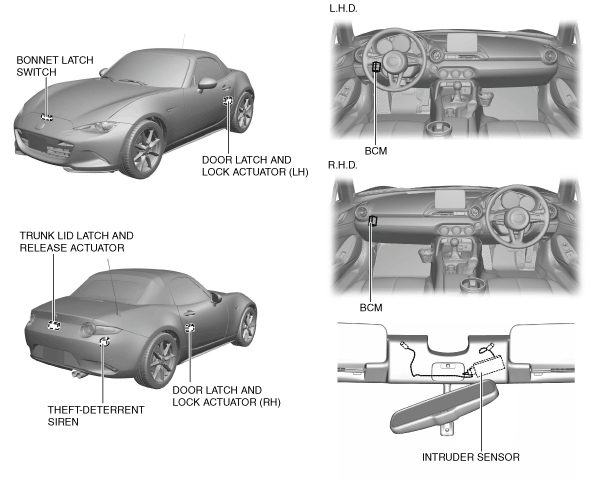

With intruder sensor

amxzzn00000957

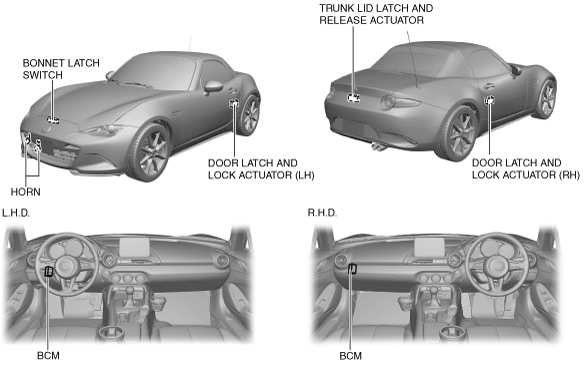

Without intruder sensor

amxzzn00000958
