TRUNK LID OPENER SWITCH
id091400113900
Purpose
• Transmits the trunk lid opener switch operation of the user to the BCM.
Function
• The trunk lid opener switch on signal is sent to the BCM by operating the trunk lid opener switch.
Construction, Operation

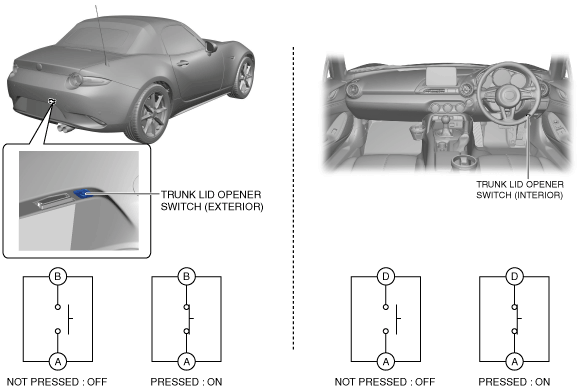

• While the trunk lid opener switch is pressed, the switch turns on (contact point: closed).
Fail-safe
• Not applicable
