DOOR LOCK-LINK SWITCH INSPECTION

id091400511500

LH

1.  Fully close the door glass.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION.)

(3)  Door key cylinder (See DOOR KEY CYLINDER REMOVAL/INSTALLATION.)

(4)  Inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(5)  Door latch and lock actuator (See DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

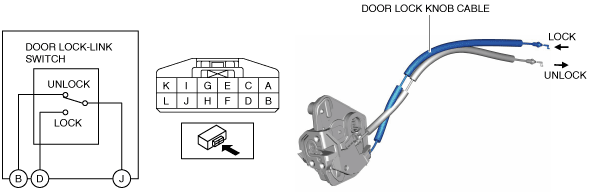

4.  When the door lock knob cable is pulled or pressed in, verify that the continuity is as indicated in the table.

am3uuw00009820

amxuuw00004201

•  If not as indicated in the table, replace the door latch and lock actuator. (See DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

RH

1.  Fully close the door glass.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION.)

(3)  Inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(4)  Door latch and lock actuator (See DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

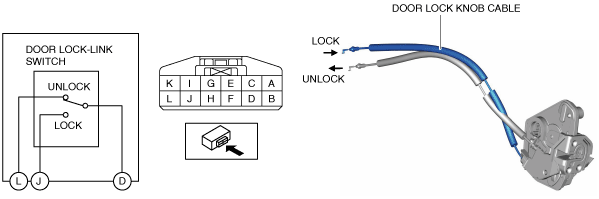

4.  When the door lock knob cable is pulled or pressed in, verify that the continuity is as indicated in the table.

amxzzw00003483

amxzzw00003484

•  If not as indicated in the table, replace the door latch and lock actuator. (See DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
