KEYLESS RECEIVER INSPECTION

id091400514400

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION.)

(2)  Seat (LH) (See SEAT REMOVAL/INSTALLATION.)

(3)  Scuff plate (LH) (See SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(5)  Side shelf (LH) (See SIDE SHELF REMOVAL/INSTALLATION.)

3.  Disconnect the connector from the keyless receiver.

4.  Remove the keyless receiver. (See KEYLESS RECEIVER REMOVAL/INSTALLATION.)

5.  Reconnect the connector.

6.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

7.  Verify that the voltages of each of the terminals are as indicated in the terminal voltage table (reference).

•  If the voltage is not as specified in the terminal voltage table (reference), inspect the parts under Inspection item(s) and related wiring harnesses.

―  If the system does not operate normally even though the parts under Inspection Item(s) and related wiring harnesses do not have any malfunction, replace the keyless receiver. (See KEYLESS RECEIVER REMOVAL/INSTALLATION.)

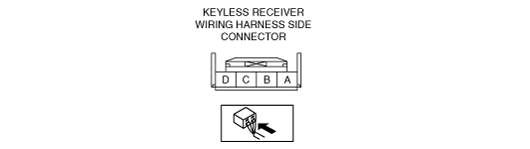

Terminal Voltage Table (Reference)

am2zzw00008614

Terminal	Signal name	Connected to	Measurement conditions	Voltage (V)	Inspection item(s)
A	Power supply	Start stop unit	Under any condition	Approx. 5.0	Start stop unit
B	DATA	Start stop unit	Because this terminal is for communication, determination using terminal voltage inspection is not possible.		Start stop unit
D	GND	Body ground	Under any condition	1.0 or less	Ground
