THEFT-DETERRENT SIREN REMOVAL/INSTALLATION

id091400630100

1.  Open the trunk lid.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

4.  Remove the trunk side trim (RH). (See TRUNK END TRIM REMOVAL/INSTALLATION.)

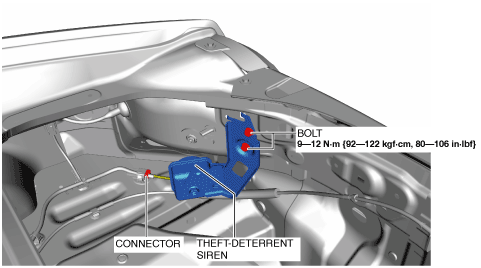

5.  Disconnect the connector.

amxzzw00003524

6.  Remove the bolts.

7.  Remove the theft-deterrent siren.

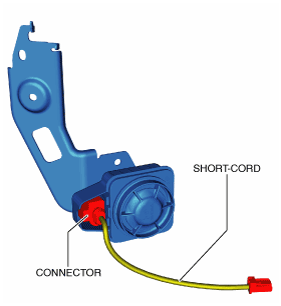

8.  Disconnect the connector from the theft-deterrent siren.

amxzzw00003525

9.  Remove the short-cord from the theft-deterrent siren.

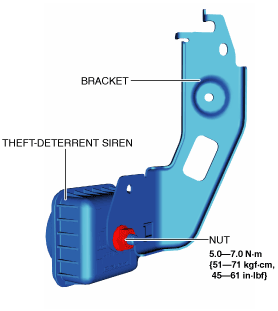

10.  Remove the nut.

amxzzw00003526

11.  Remove the theft-deterrent siren from the bracket.

amxzzw00003527

12.  Install in the reverse order of removal.
