FUEL-FILLER LID LOCK ACTUATOR REMOVAL/INSTALLATION

id091400700700

1.  Open the trunk lid.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

4.  Partially peel back the trunk side trim (LH) to the position allowing removal of the fuel-filler lid lock actuator. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

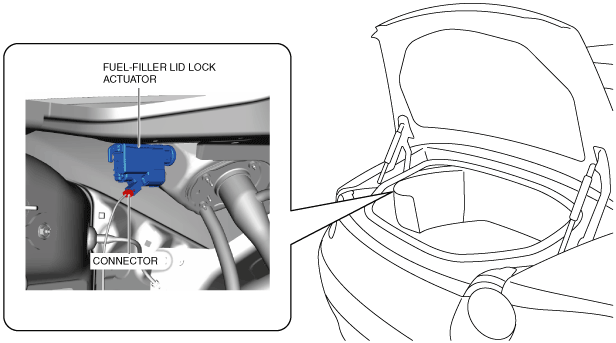

5.  Disconnect the connector.

amxuuw00002817

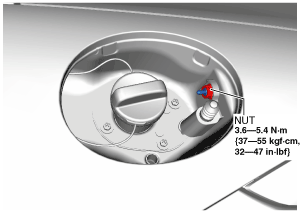

6.  Remove the nut.

amxuuw00002818

7.  Remove the fuel-filler lid lock actuator.

8.  Install in the reverse order of removal.
