RETRACTABLE HARDTOP

id091600016000

Outline

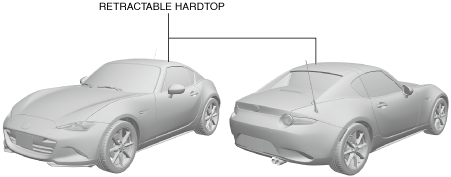

• With the adoption of the retractable hardtop, the roof can be opened/closed electrically.

• A retractable hardtop has been adopted which has the following advantages.

― By only operating the switch, opening/closing of the roof can be completed without changing the driving posture, improving convenience.

― The instrument cluster indication, indicator light, and the alarm sound are used to notify the driver of the roof status, improving convenience.

― The overall roof opening/closing time has been shortened by optimizing the roof operation during opening/closing.

― With the adoption of the metal top, quietness has been improved.

amxzzn00001682

Functions

Electric open/close control function

• The roof opens/closes electrically when the switch is operated.

Roof status display function

• While the electric open/close control function is operating, the roof status is displayed in the instrument cluster.

Guidance function

• Alerts using the buzzer during electric open/close control function operation and when a malfunction is detected.

Construction

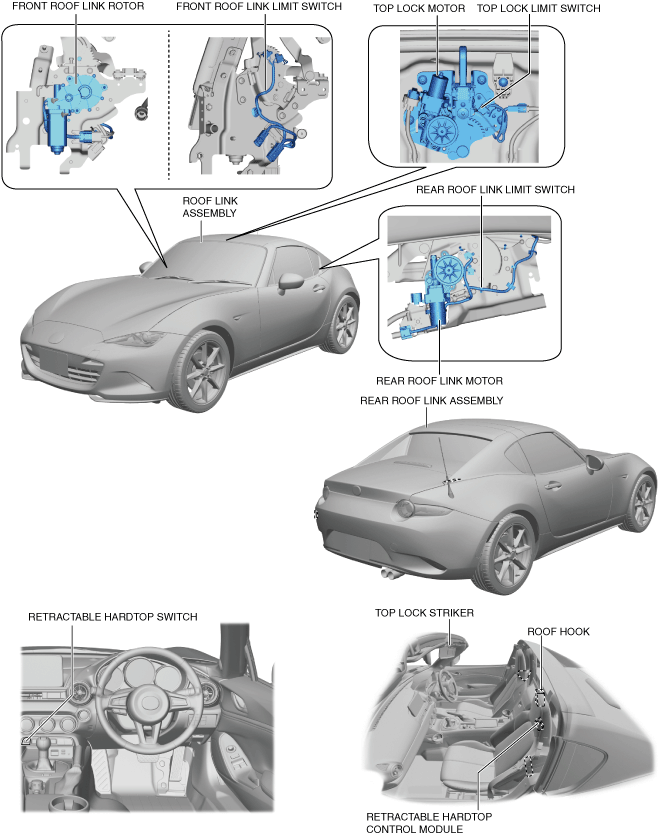

• The retractable hardtop consists of the following parts.

― Retractable hardtop switch

― Front roof

― Middle roof

― Rear roof

― Rear roof wedge

― Top lock striker

― Drain cover

― Roof hook

― Roof retainer

― Lock bracket

― Front roof link motor

― Rear roof link motor

― Top lock limit switch

― Front roof open limit switch

― Front roof close limit switch

― Rear roof open limit switch

― Rear roof close limit switch

amxzzn00001578

System Wiring Diagram

amxzzn00001579

Operation

Operation condition

• When all the following conditions are met, the retractable hardtop operates.

― Ignition is switched ON

― Trunk lid is in fully closed position

― Selector lever is in position other than R (AT vehicles)

― Shift lever is in position other than R (MT vehicles)

― Vehicle inclination angle is within ± 15 °

― Vehicle speed is 10 km/h or less

― Retractable hardtop switch is on (retractable hardtop switch is pressed)

Electric open operation

Note

• If any of the operation conditions is not met even when the retractable hardtop is operating, the retractable hardtop control module may temporarily stop.

amxzzn00001512

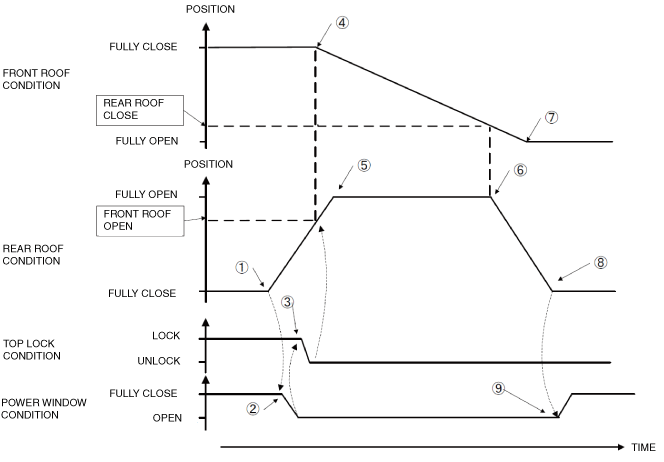

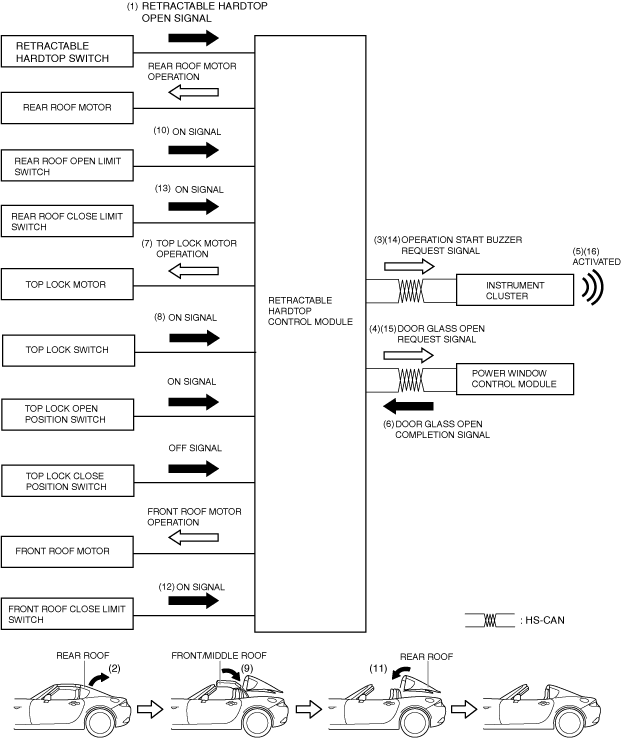

1. When the retractable hardtop switch is pressed in the open direction, a retractable hardtop open signal is input (1) to the retractable hardtop control module.

2. When the retractable hardtop control module detects the retractable hardtop open signal with all retractable hardtop open operation conditions met, it operates the rear roof link motor, and moves the rear roof in the direction of arrow (2) shown in the figure and sends the following signals simultaneously.

• Operation start buzzer request signal (3) to instrument cluster

• Door glass open request signal (4) to power window control module

3. When the instrument cluster receives an operation start buzzer request signal, the operation start buzzer is activated (5).

4. When the power window control module receives a door glass open request signal, it lowers the door glass.

5. When the retractable hardtop control module receives a door glass open completion signal (6) from the power window control module, it operates (7) the top lock motor and releases the top lock (8).

6. When the rear roof is opened to the specified position or more, the retractable hardtop control module operates the front roof link motor and moves the front/middle roof in the direction of arrow (9).

7. When the retractable hardtop control module receives an ON signal (10) from the rear roof open limit switch, it determines that the rear roof is fully opened, and stops the rear roof link motor.

8. When the front roof is opened to the specified position or more, the retractable hardtop control module operates the rear roof link motor and moves the rear roof in the direction of arrow (11).

9. When the retractable hardtop control module receives an ON signal (12) from the front roof close limit switch, it determines that the front/middle roof is fully closed, and stops the front roof link motor.

10. When the retractable hardtop control module receives an ON signal (13) from the rear roof close limit switch, it determines that the rear roof is fully closed, and stops the rear roof link motor and sends the following signals simultaneously.

• Operation end buzzer request signal (14) to instrument cluster

• Door glass close request signal (15) to power window control module

11. When the instrument cluster receives an operation end buzzer request signal, the operation end buzzer is activated (16).

12. When the power window control module receives a door glass close request signal, it raises the door glass.

amxzzn00001582

Electric close operation

amxzzn00001514

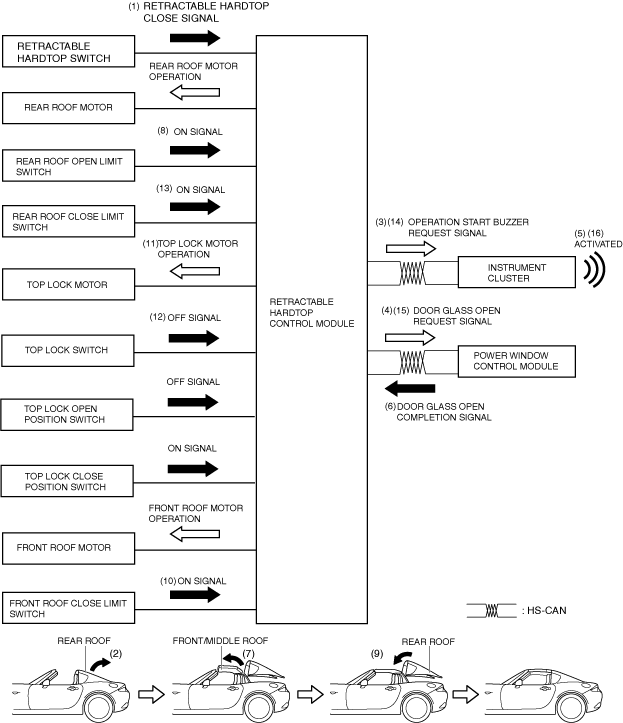

1. When the retractable hardtop switch is pressed in the close direction, a retractable hardtop close signal is input (1) to the retractable hardtop control module.

2. When the retractable hardtop control module detects a retractable hardtop close signal with all retractable hardtop close operation conditions met, it operates the rear roof link motor, and moves the rear roof in the direction of arrow (2) shown in the figure and sends the following signals simultaneously.

• Operation start buzzer request signal (3) to instrument cluster

• Door glass open request signal (4) to power window control module

3. When the instrument cluster receives an operation start buzzer request signal, the operation start buzzer is activated (5).

4. When the power window control module receives a door glass open request signal, it lowers the door glass.

5. When the retractable hardtop control module receives a door glass open completion signal (6) from the power window control module and the rear roof is opened to the specified position or more, the retractable hardtop control module operates the front roof link motor and moves the front/middle roof in the direction of arrow (7).

6. When the retractable hardtop control module receives an ON signal (8) from the rear roof open limit switch, it determines that the rear roof is fully opened, and stops the rear roof link motor.

7. When the front/middle roof is opened to the specified position or more, the retractable hardtop control module operates the rear roof link motor and moves the rear roof in the direction of arrow (9).

8. When the retractable hardtop control module receives an ON signal (10) from the front roof close limit switch, it determines that the front roof is fully closed, and stops the front roof link motor and operates (11) the top lock motor simultaneously, and secures the top lock (12).

9. When the retractable hardtop control module receives an ON signal (13) from the rear roof close limit switch, it determines that the rear roof is fully closed, and stops the rear roof link motor and sends the following signals simultaneously.

• Operation end buzzer request signal (14) to instrument cluster

• Door glass close request signal (15) to power window control module

10. When the instrument cluster receives an operation end buzzer request signal, the operation end buzzer is activated (16).

11. When the power window control module receives a door glass close request signal, it raises the door glass.

amxzzn00001583

Roof status display function

• The retractable hardtop control module displays each roof condition during electric open/close control operation in the instrument cluster as indicated in the table.

During electric open operation

Operation	Roof condition	Retractable hardtop switch	Retractable hardtop operation indicator	Retractable hardtop warning sound
Before operation	Roof closed	OFF	OFF	OFF
During open/close operation	Rear roof opened	ON (open side)	Flash	ON
	Rear roof opened Front/middle roof opened			OFF
	Rear roof opened Front/middle roof closed			OFF
Operation completed	Rear roof closed		OFF	ON

Guidance function

• Under the conditions in the table below, the retractable hardtop control module sends a sound request signal to the instrument cluster.

Condition

Warning indication

Buzzer sound pattern^*1

Electric open/close operation is started

—

Pattern A

Electric open/close operation is completed

—

Pattern B

Any of the following conditions is met during electric open/close operation

―  Trunk is opened

―  Selector lever is in R position (AT vehicles)

―  Shift lever is in R position (MT vehicles)

―  Vehicle speed exceeds 10 km/h

Pattern C

Switch is operated with all operation conditions not met

—

Pattern D

Operation stops or is stopped while electric open/close is operating

—

Pattern E

Retractable hardtop is operated during i-stop

—

Retractable hardtop control module system malfunction

—

*1 :For the retractable hardtop warning sound pattern, refer to the [RETRACTABLE HARDTOP WARNING BEEP].(See RETRACTABLE HARDTOP WARNING BEEP.

Condition	Warning indication	Buzzer sound pattern^*1
Electric open/close operation is started	—	Pattern A
Electric open/close operation is completed	—	Pattern B
Any of the following conditions is met during electric open/close operation ― Trunk is opened ― Selector lever is in R position (AT vehicles) ― Shift lever is in R position (MT vehicles) ― Vehicle speed exceeds 10 km/h		Pattern C



Switch is operated with all operation conditions not met	—	Pattern D
Operation stops or is stopped while electric open/close is operating	—	Pattern E
Retractable hardtop is operated during i-stop		—
Retractable hardtop control module system malfunction		—
