RETRACTABLE HARDTOP WARNING LIGHT/INDICATOR LIGHT
id091600016300
Purpose
• The retractable hardtop warning light/indicator light notifies the driver of the retractable hardtop operation conditions or a retractable hardtop malfunction.
Functions
• The indicator unit turns on/flashes the retractable hardtop warning light/indicator light based on the warning indication request signal sent from the retractable hardtop control module.
|
Illumination pattern
|
Illumination condition
|
Lights off condition
|
|
During retractable hardtop operation
|
 |
Retractable hardtop operation continues
|
• Open operation is finished
• Close operation is finished
|
|
Retractable hardtop is half-open and not operating
|
 |
• Retractable hardtop is fully closed and top lock is unlocked (top lock switch is OFF)
• Retractable hardtop switch is turned off during retractable hardtop operation and the operation is temporarily stopped
|
• Retractable hardtop switch is ON
• Top lock is locked after close operation is finished
|
|
Retractable hardtop malfunction
|
 |
DTC is detected or recorded
|
• Malfunction is repaired or DTC is cleared
|
Construction

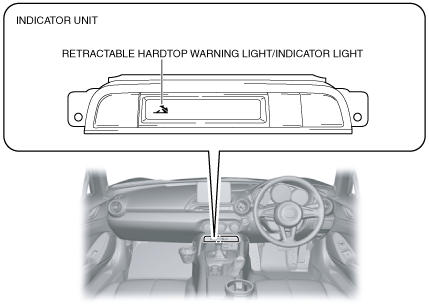

• The retractable hardtop warning light/indicator light is built into the indicator unit.
Operation

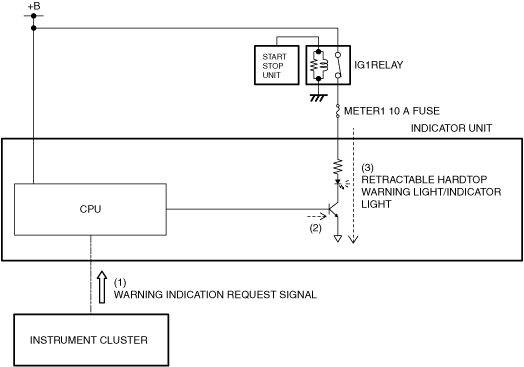

1. When the indicator unit receives (1) a warning indication request signal from the retractable hardtop control module while the ignition is switched ON (engine off or on), it turns the transistor on (2).
2. When the transistor turns on, a ground circuit with the retractable hardtop warning light/indicator light is established, and the retractable hardtop warning light/indicator light turns on or flashes (3).
Fail-safe
• Not applicable
