TOP LOCK LIMIT SWICH

id091600016800


Purpose, Function

•  The top lock limit switch outputs the secure/release condition of the top lock to the retractable hardtop control module.

Switch condition

Top lock condition
Top lock open position switch
ON
Top lock in position other than release
OFF
Top lock in release position
Top lock close position switch
ON
Top lock in release position
OFF
Top lock in position other than release


Construction

•  The top lock limit switch is located on the front headliner of the front roof.
amxzzn00001523

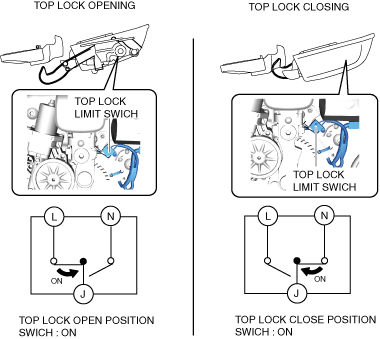

Operation

•  The top lock switch turns on/off by opening/closing the top lock.
amxzzn00001577

Fail-safe

•  Not applicable
