FRONT/REAR ROOF LINK LIMIT SWICH

id091600016900


Purpose, Function

•  The front/rear roof link limit switch outputs the front/rear roof opening/closing condition to the retractable hardtop control module.

Switch condition

Top lock condition
Front roof link open limit switch
ON
Front roof other than fully open
OFF
Front roof fully open
Front roof link close limit switch
ON
Front roof other than fully open
OFF
Front roof fully open
Rear roof link open limit switch
ON
Rear roof other than fully open
OFF
Rear roof fully open
Rear roof link close limit switch
ON
Rear roof fully open
OFF
Rear roof other than fully open


Construction

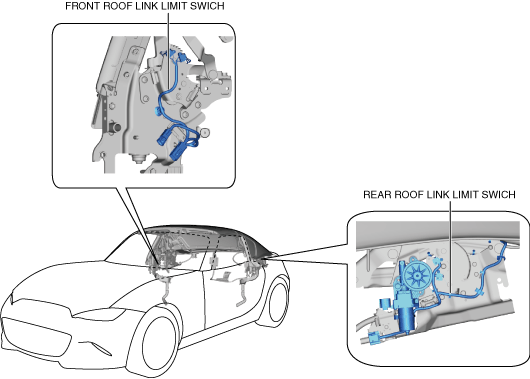

•  The front/rear roof link limit switches are located on the support part of each link of the front/rear roof.
amxzzn00001554

Operation

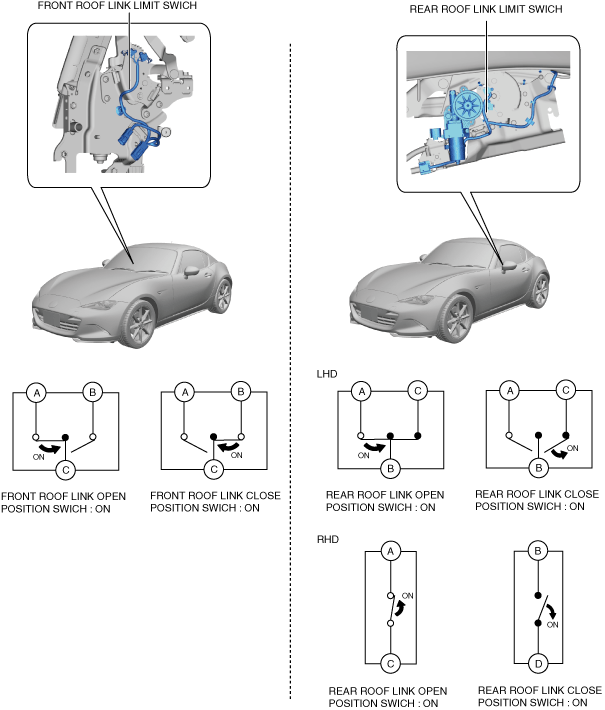

•  The front/rear roof link limit switch turns on/off by opening/closing the front/rear roof.
amxzzn00001555

Fail-safe

•  Not applicable
