CONVERTIBLE TOP SWITCH INSPECTION

id091600030100

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the scuff plate. (See SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

4.  Verify that the continuity is as indicated in the table.

amxuuw00004180

amxuuw00004181

•  If not as indicated in the table, replace the convertible top. (See CONVERTIBLE TOP REMOVAL/INSTALLATION.)

Note

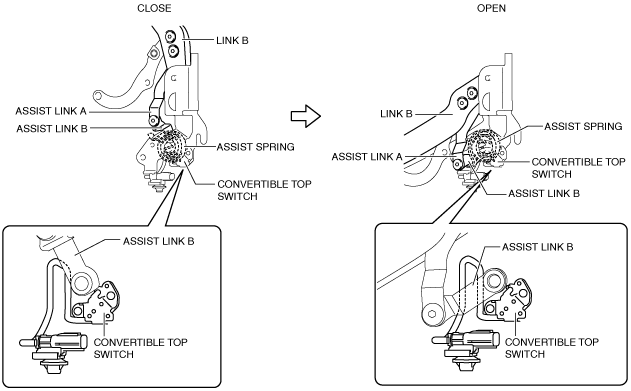

•  When inspecting the convertible top switch on the unlatch side of the convertible top, move link B to the position 94—104° from the fully-closed position.

amxuuw00004182
