FRONT ROOF LINK COVER REMOVAL/INSTALLATION

id091600105700

1.  Using the retractable hardtop switch, keep the front roof half-open.

amxzzw00004119

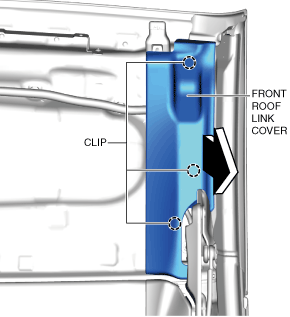

2.  Pull the front roof link cover in the direction of the arrow shown in the figure and remove it.

amxzzw00004650

3.  Install in the reverse order of removal.
