COWL GRILLE REMOVAL/INSTALLATION

id091600207695

L.H.D.

1.  Remove the wiper arm and blade. (See WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

2.  Disconnect washer hose B from joint pipe A. (See WASHER HOSE REMOVAL/INSTALLATION.)

3.  Detach the weatherstrip clips A and B from the cowl grille.

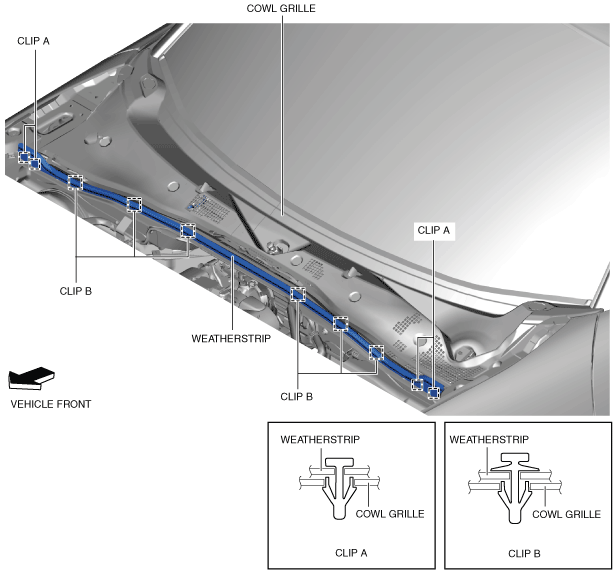

amxuuw00003191

4.  Remove the weatherstrip.

5.  Remove the hole covers.

amxzzw00004654

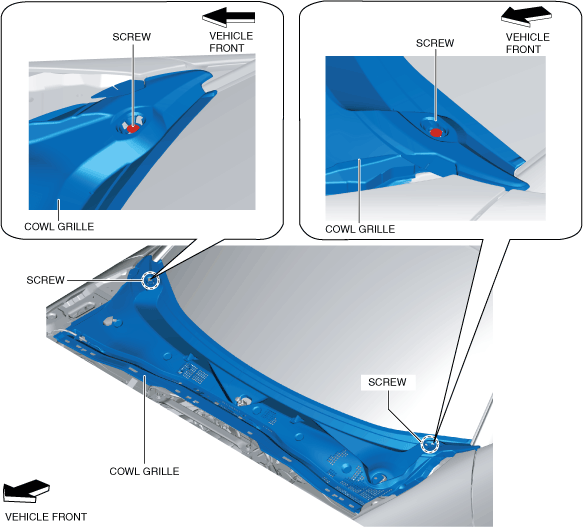

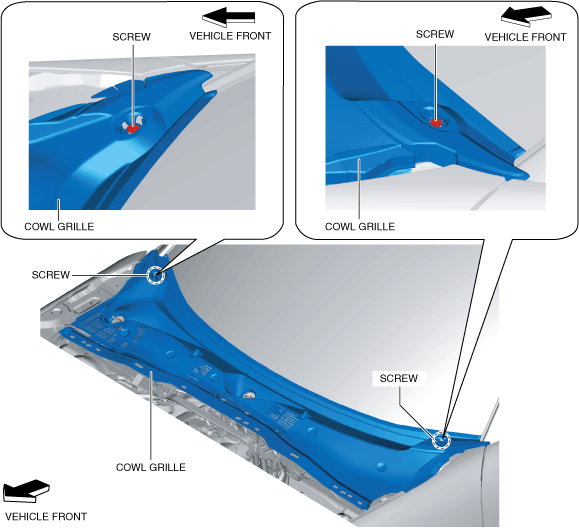

6.  Remove the screws.

amxzzw00004655

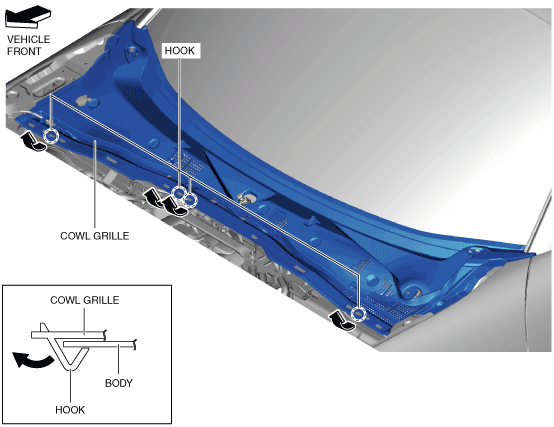

7.  Pull the cowl grille in the direction of the arrows shown in the figure and detach the cowl grille hooks from the body.

amxzzw00003842

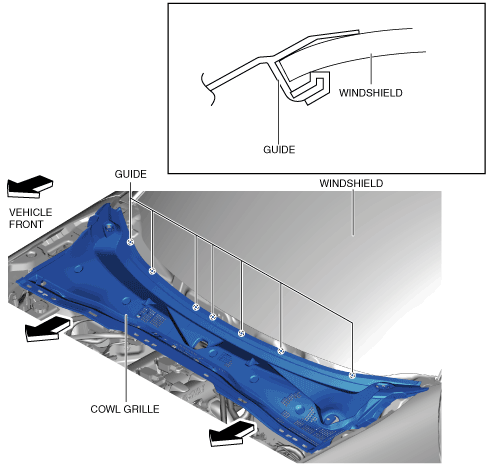

8.  Pull the cowl grille in the direction of the arrows shown in the figure and remove the guides from the windshield.

amxuuw00003195

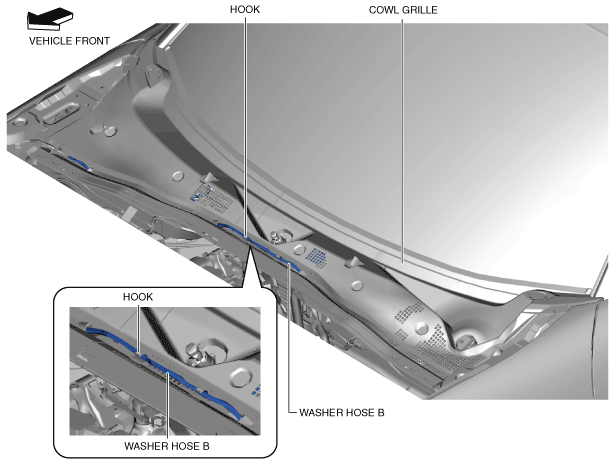

9.  Detach washer hose B from the cowl grille hook.

amxzzw00003843

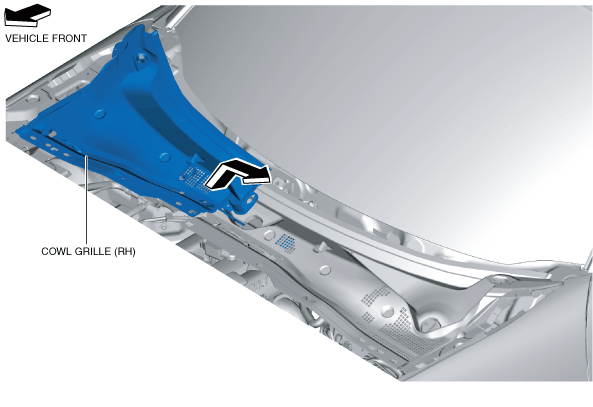

10.  Move the cowl grille (RH) in the direction of the arrow shown in the figure.

amxzzw00004656

11.  Move the cowl grille (LH) in the direction of arrow (1) shown in the figure.

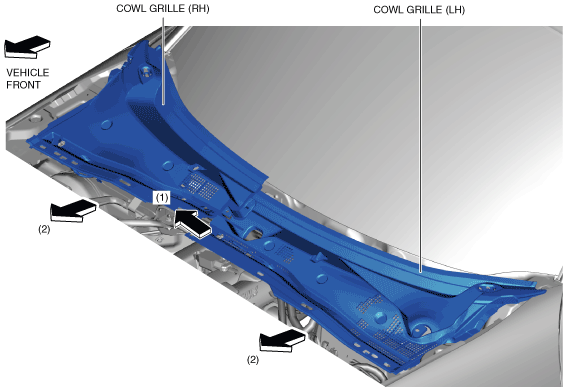

amxuuw00003198

12.  Remove both cowl grilles (LH and RH) in the direction of arrows (2) as a single unit.

13.  Install in the reverse order of removal.

R.H.D.

1.  Remove the wiper arm and blade. (See WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

2.  Disconnect washer hose B from joint pipe A. (See WASHER HOSE REMOVAL/INSTALLATION.)

3.  Detach the weatherstrip clips A and B from the cowl grille.

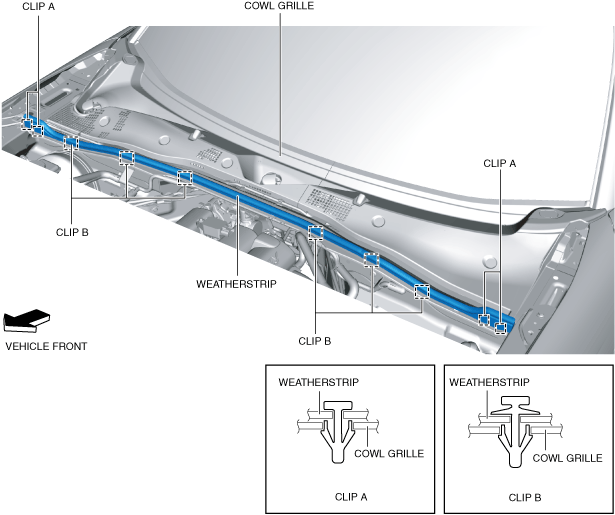

amxzzw00004657

4.  Remove the weatherstrip.

5.  Remove the hole covers.

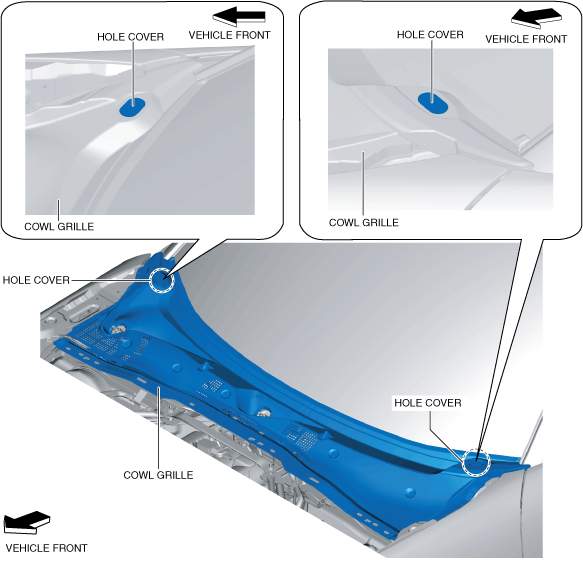

amxzzw00004658

6.  Remove the screws.

amxzzw00004659

7.  Pull the cowl grille in the direction of the arrows shown in the figure and detach the cowl grille hooks from the body.

amxzzw00002903

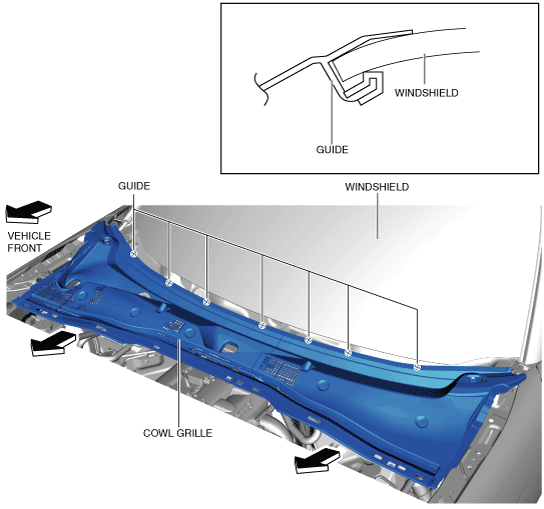

8.  Pull the cowl grille in the direction of the arrows shown in the figure and remove the guides from the windshield.

amxzzw00002904

9.  Detach washer hose B from the cowl grille hook.

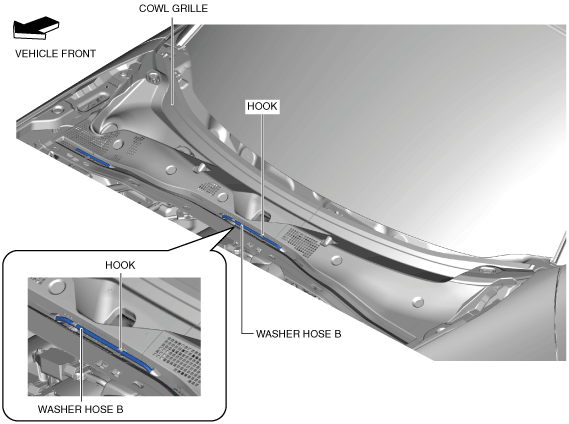

amxzzw00002905

10.  Move the cowl grille (LH) in the direction of the arrow shown in the figure.

amxzzw00002906

11.  Move the cowl grille (RH) in the direction of arrow (1) shown in the figure.

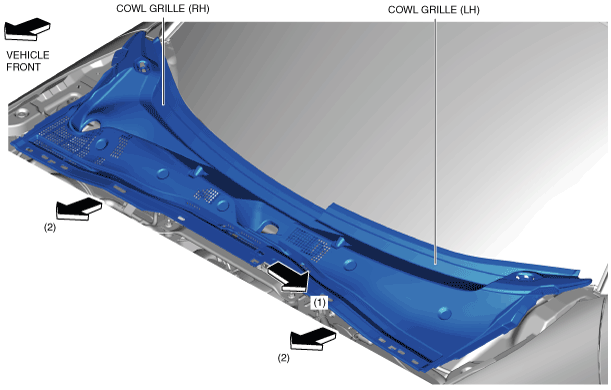

amxzzw00002907

12.  Remove both cowl grilles (LH and RH) in the direction of arrows (2) as a single unit.

13.  Install in the reverse order of removal.
