FRONT BELTLINE MOLDING REMOVAL/INSTALLATION

id091600207700

1.  Fully open the door glass.

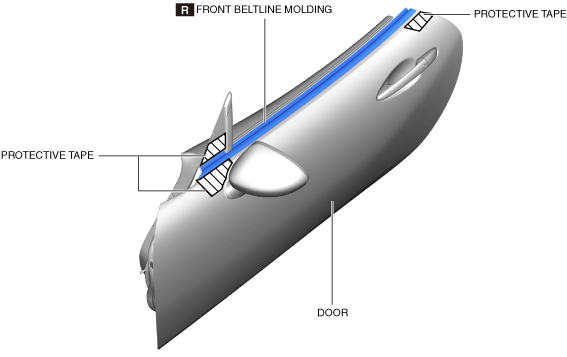

2.  To prevent scratches or damage, apply protective tape to the positions shown in the figure.

amxzzw00004414

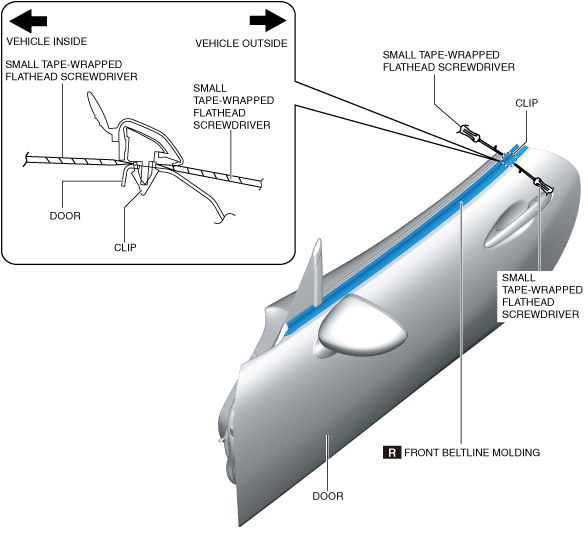

3.  Insert small tape-wrapped flathead screwdrivers into the position shown in the figure, and detach the front beltline molding clip from the door.

amxzzw00004415

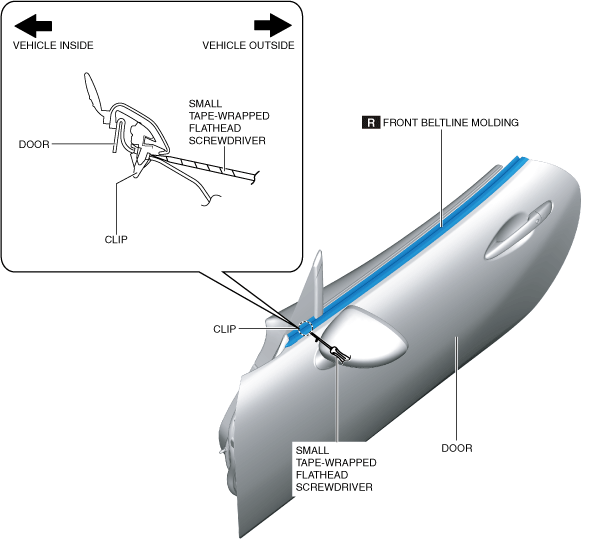

4.  Insert a small tape-wrapped flathead screwdriver into the position shown in the figure, and detach the front beltline molding clip from the door.

amxzzw00004416

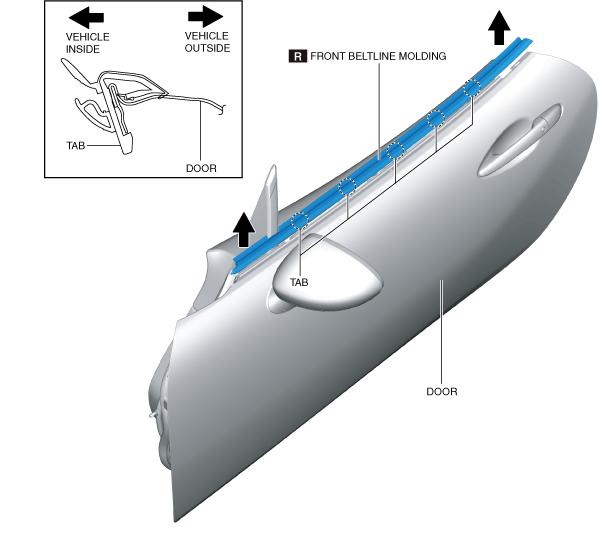

5.  Pull up the front beltline molding in the direction of the arrows shown in the figure and detach the front beltline molding tabs from the door.

amxzzw00004417

6.  Remove the front beltline molding.

7.  Install in the reverse order of removal.
