REAR DECK PLATE REMOVAL

id091600608600

1.  Open the trunk.

2.  Insert the remover tool in the position shown in the figure and remove the double-sided adhesive tape.

amxzzw00003848

3.  Move the remover tool in the direction of the arrow shown in the figure and detach the rear deck plate pin from the body.

amxuuw00003208

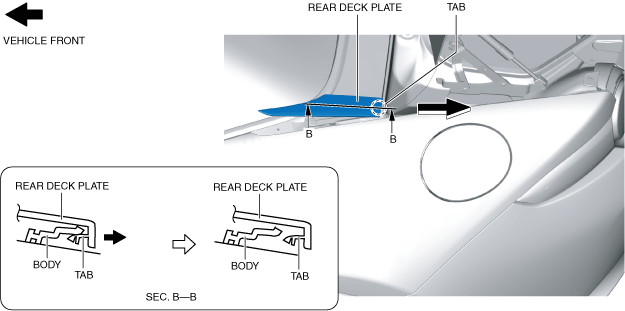

4.  Move the rear deck plate in the direction of the arrow shown in the figure and detach the rear deck plate tab from the body.

amxzzw00004693

5.  Remove the rear deck plate.
