TOP LOCK STRIKER REMOVAL/INSTALLATION

id091600715000

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(2)  Female wedge (See FEMALE WEDGE REMOVAL/INSTALLATION.)
(3)  Front header trim (See FRONT HEADER TRIM REMOVAL/INSTALLATION.)

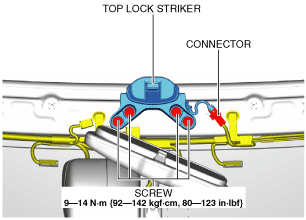

3.  Disconnect the connector.

amxuuw00005016

4.  Remove the screws.

5.  Remove the top lock striker.

6.  Install in the reverse order of removal.

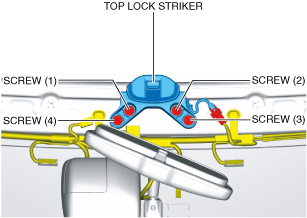

•  When installing the top lock striker installation screws, tighten the screws in the order shown in the figure.
amxzzw00004696
