HEADER COVER REMOVAL/INSTALLATION
id091600715100

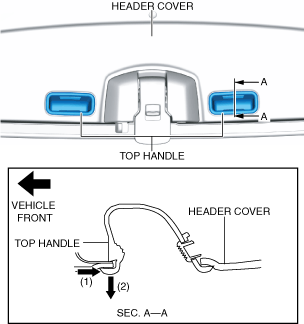

1. While pressing the top handles in the direction of arrow (1) shown in the figure, pull and remove them in the direction of arrow (2).
amxzzw00004697
|
2. Remove the top lock cover. (See TOP LOCK REMOVAL/INSTALLATION.)

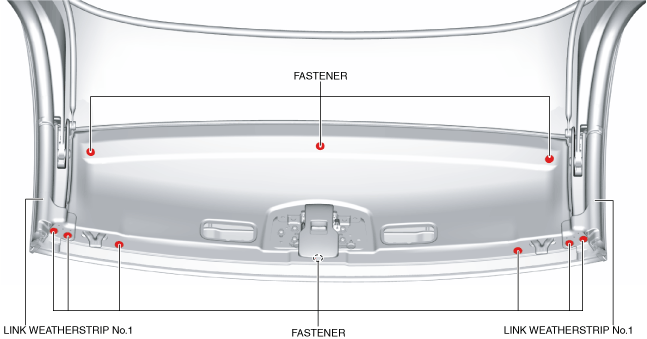

3. Remove the fasteners.
amxzzw00004698
|
4. Partially peel back the link weatherstrip No.1.

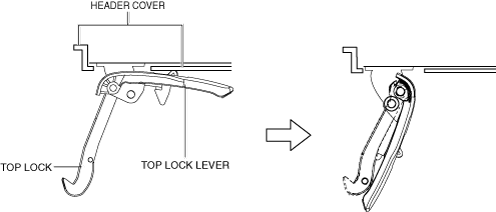

5. Hold the top lock and top lock lever using a hand and keep them in the condition shown in the figure.
amxzzw00004699
|
6. Move the header cover in the direction of the arrow shown in the figure and remove it so that it does not contact the top lock.
amxzzw00004700
|
7. Install in the reverse order of removal.
