DRAIN COVER DISASSEMBLY/ASSEMBLY
id091600716900

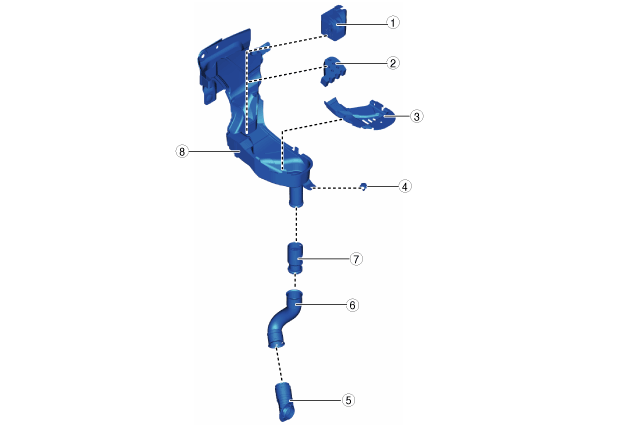

1. Disassemble in the order indicated in the table.
amxuuw00005038
|
|
1
|
Upper drain filter
|
|
2
|
Lower drain filter
|
|
3
|
Drain cover top
|
|
4
|
Clip
|
|
5
|
Drain hose joint
|
|
6
|
Drain hose
|
|
7
|
Drain valve
|
|
8
|
Drain cover
|
2. Assemble in the reverse order of disassembly.
