FRONT UNDER COVER REMOVAL/INSTALLATION

id091600718300

1.  Lift up the vehicle.

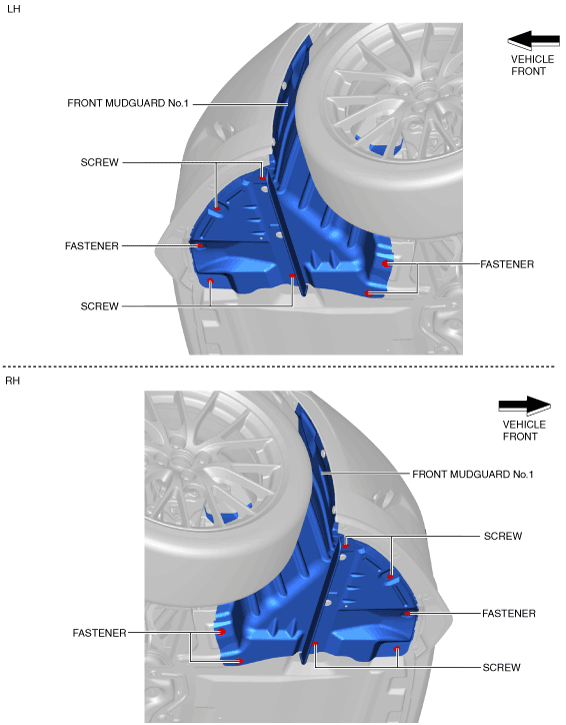

2.  Remove the screws and fasteners and partially peel back front mudguard No.1.

amxuuw00003217

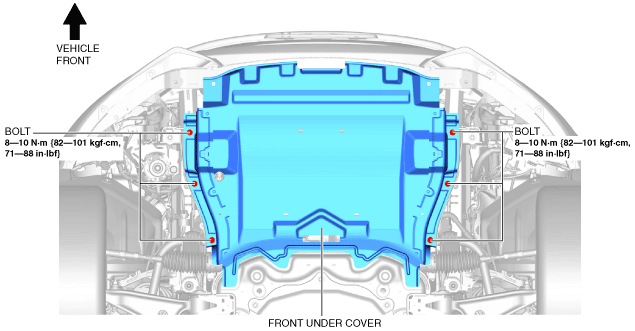

3.  Remove the bolts.

amxuuw00003218

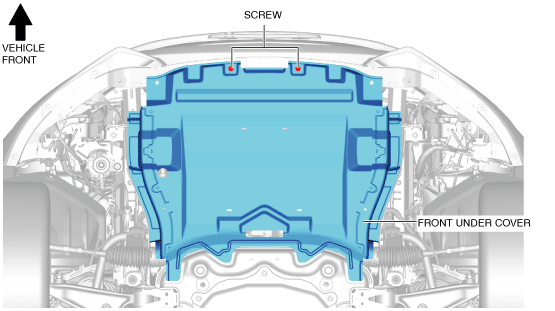

4.  Remove the screws.

amxzzw00003851

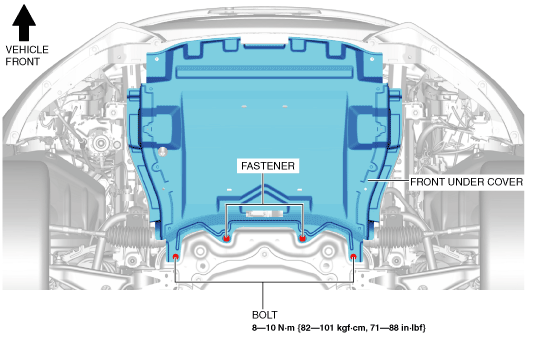

5.  Remove the bolts and fasteners.

amxuuw00003220

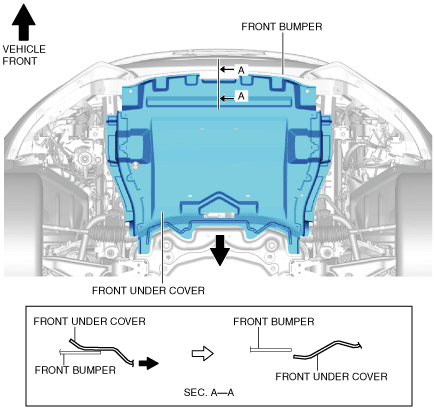

6.  Move the front under cover in the direction of the arrow shown in the figure and remove it.

amxuuw00003221

7.  Install in the reverse order of removal.
