SIDE STEP MOLDING INSTALLATION

id091600804300

1.  Open the door.

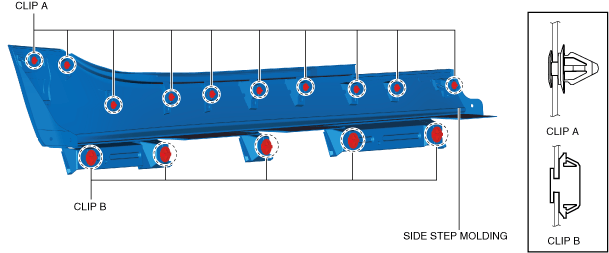

2.  Install clips A and B to the side step molding.

amxzzw00004726

3.  Press the side step molding in the direction of the arrow shown in the figure and install clips A.

amxuuw00003224

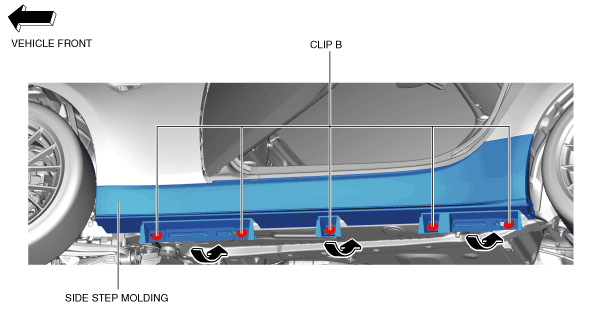

4.  Press the side step molding in the direction of the arrows shown in the figure and install clips B.

amxuuw00003225

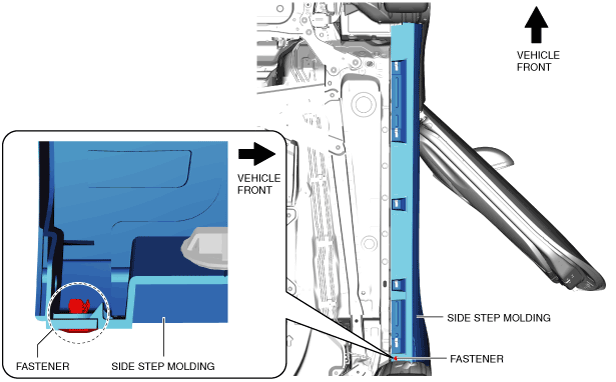

5.  Install the fastener.

amxuuw00003226

6.  Install the rear deflector. (with rear deflector) (See REAR DEFLECTOR REMOVAL/INSTALLATION.)

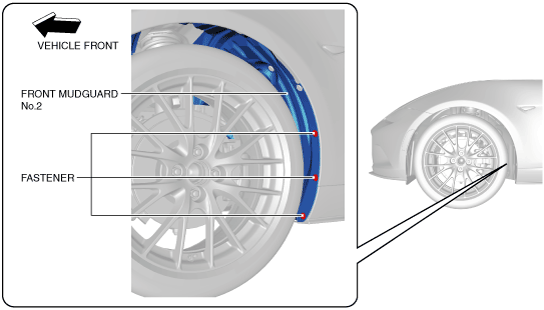

7.  Install the front mudguard No.2 fasteners.

amxuuw00003227
