REAR SPLASH SHIELD REMOVAL/INSTALLATION

id091600808600

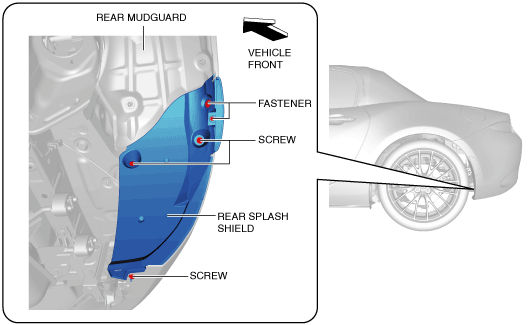

1.  Remove the screws and fasteners.

ardjjw00004263

2.  Move the rear splash shield in the direction of the arrow shown in the figure and detach the rear splash shield tabs from the rear bumper.

amxuuw00003240

3.  Remove the rear splash shield.

4.  Install in the reverse order of removal.
