DRAIN COVER REMOVAL/INSTALLATION

id091600808900

Purpose of Adoption

Service Point

Drain cover cleaning

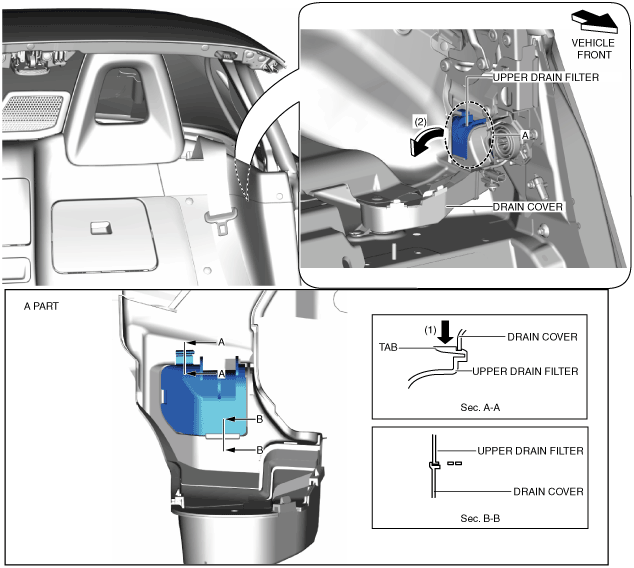

1.  While pressing the tab in the direction of arrow (1) shown in the figure, tilt the upper drain filter in the direction of arrow (2) and remove it.

amxzzq00000012

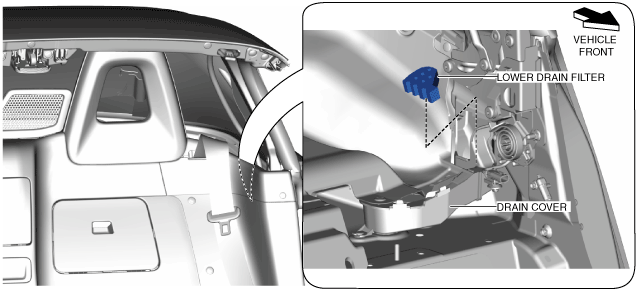

2.  Remove the lower drain filter.

amxzzq00000013
