REAR MUDGUARD REMOVAL/INSTALLATION

id091600812400

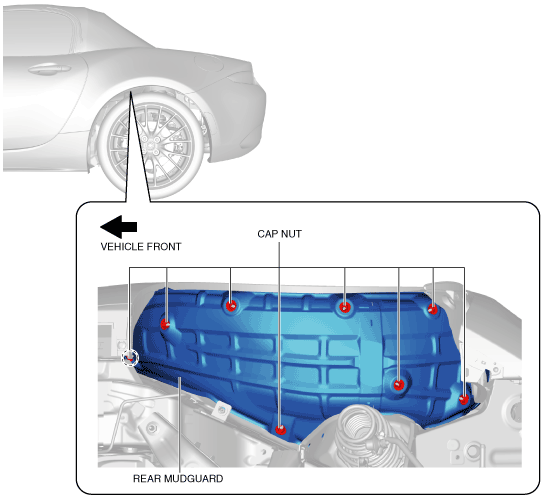

1.  Remove the cap nuts.

amxuuw00003248

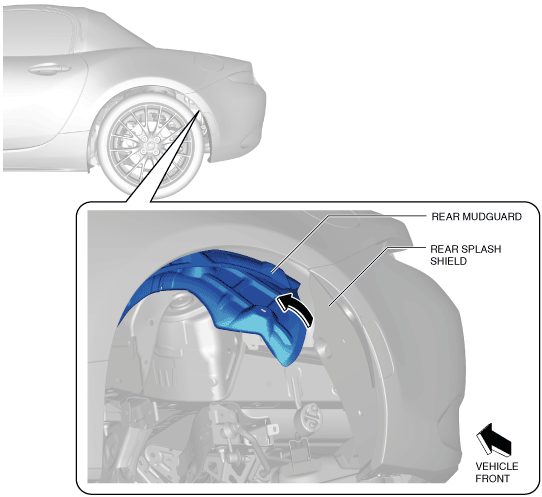

2.  Move the rear mudguard in the direction of the arrow shown in the figure, and pull it out while avoiding the rear splash shield.

amxuuw00003249

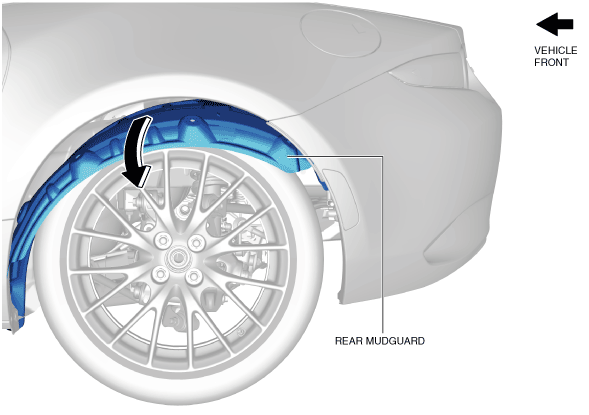

3.  Pull the rear mudguard out in the direction of the arrow shown in the figure and remove it.

amxuuw00003250

4.  Install in the reverse order of removal.
