FRONT DEFLECTOR REMOVAL/INSTALLATION

id091600900800

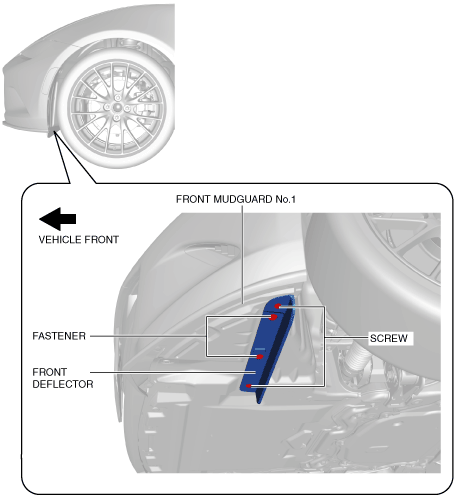

1.  Remove the fasteners and screws.

amxuuw00003253

2.  Move the front deflector in the direction of arrow (1) shown in the figure, detach the hooks, and remove the front deflector from the front mudguard No.1 in the direction of arrow (2).

amxuuw00003254

3.  Install in the reverse order of removal.
